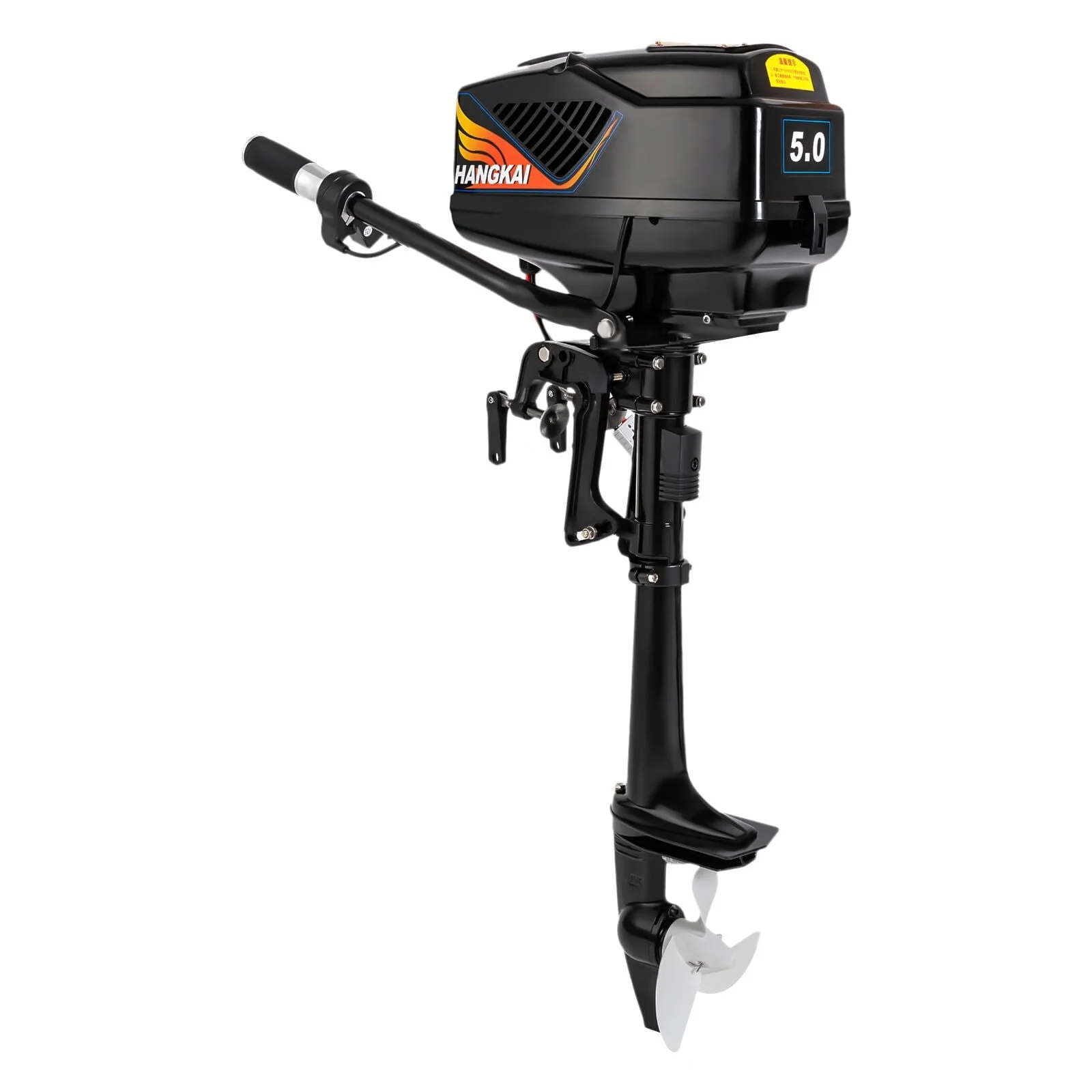

With a huge thrust, a super strong shaft, and precise speed control, the outboard engine is a good helper for your water work. Its brushless pure copper motor and flexible steering let you sneak up on fish, outdoor adventure, etc. with the best speed and low noise

This electric outboard motor is suitable for small ships with different materials within 16.4 feet in length, such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc

Specification：

Model: DD-48V-1200W

Power: 1200W/5HP

Rated Voltage: 48V

Rated Current: 18A

Rated Speed: 3000rpm

No-load Speed: 4000 rpm

Process: Spray Painting

Gear Ratio: 2.08(27:13)

Control System: Tiller Control

Max. Speed: 15km/h/9.3mph

Motor Type: Pure Copper Brushless Motor

Reverse Gear: Yes

Max. Load-bearing Capacity: 500kg/1102lbs

Recommended Battery: 1*48V/4*12V (Not Included )

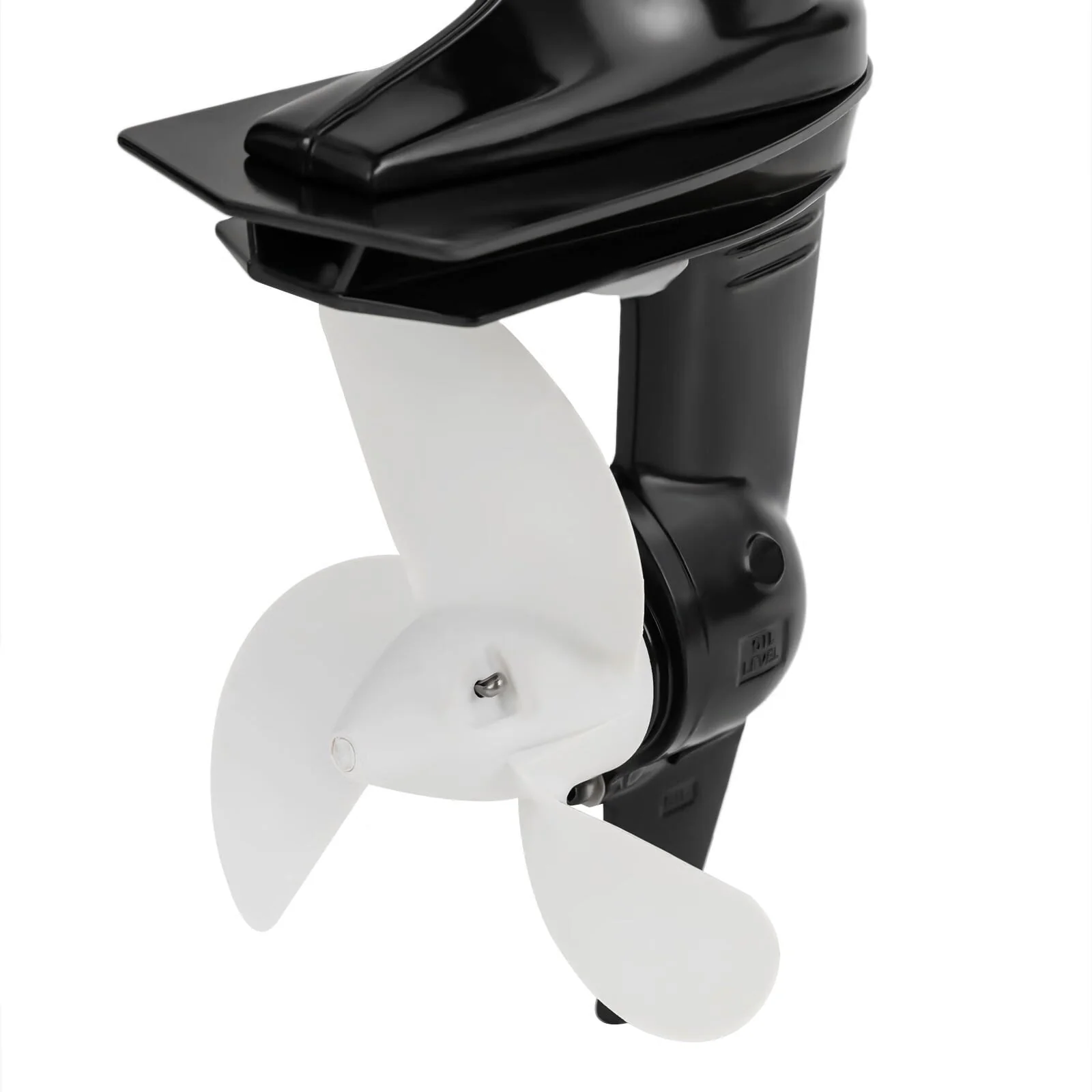

Propeller Model(in): 7-1/4×5-A(The size of the propeller is 7.25 inches/18.4cm, and the propelling distance of the propeller is 5 inches/12.7cm after one revolution)

Length of Suitable Ships: Less than 5m/16.4ft

Package Size: 95*42*29cm/37.4*16.53*11.41in

Product Size: 92*36.5*22cm/36.22*14.37*8.66in

Gross Weight: 14kg/30.86lbs

Net Weight: 12kg/26.45lbs

Tail Plate Height: 42cm/16.53in(Short Shaft)

Stern Plate Adapter Height: 40cm/15.74in

Common Faults and Troubleshooting：

1. If the starting handle is found to be powered off during operation, please check whether the positive and negative poles of the battery and the whole set of power cables are connected properly

2. Always check whether the controller screws are loose.

3. The gearbox should be replaced with gear oil for three months

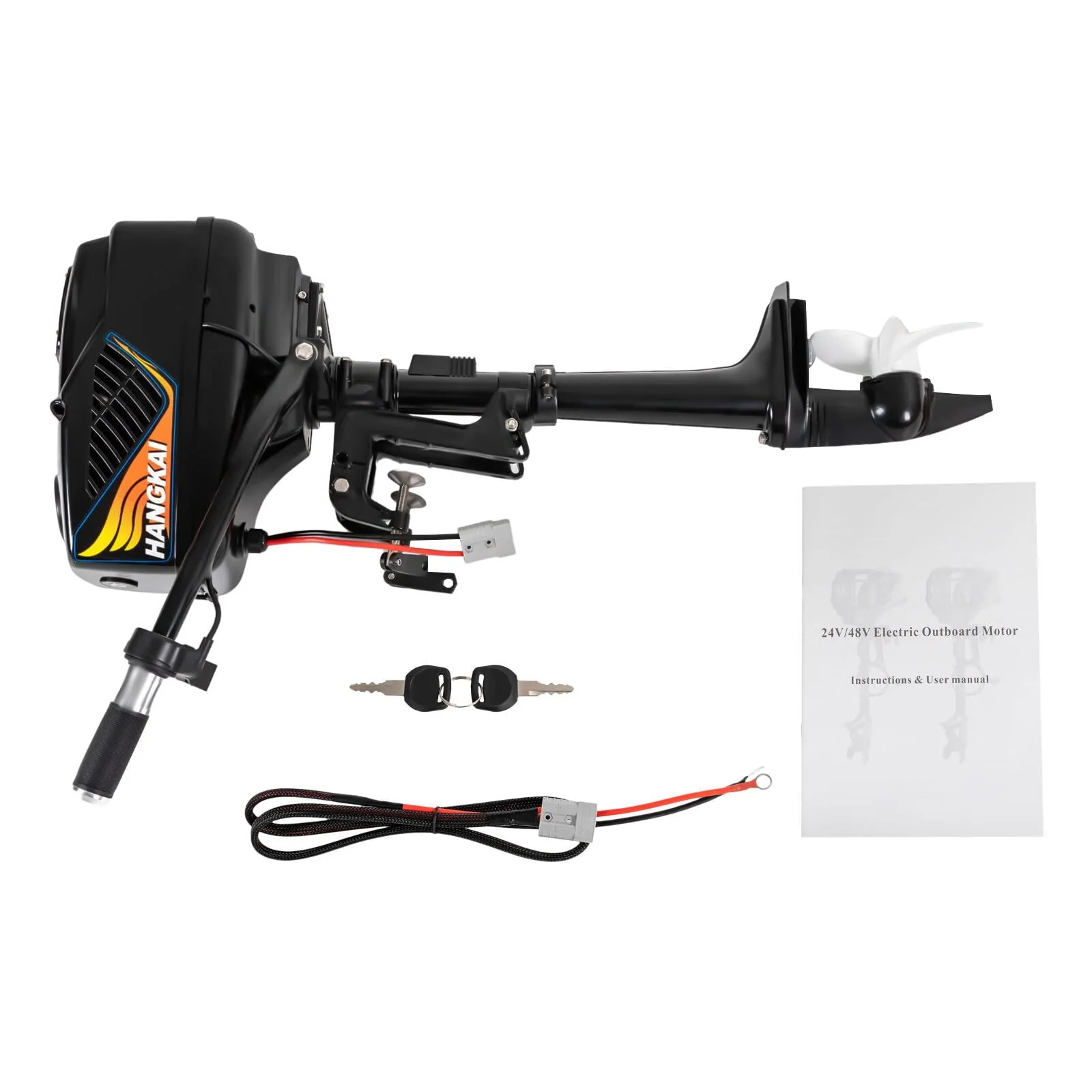

Package Included：

1 * Electric Outboard Motor

1 * Propeller

1 * English User Manual

2 * Keys

All Accessories Needed for Installation
