Description:

“�� 3MP high definition live viewing & recording

�� 3MP high definition playback channel

�� Support human detection

�� 8 built-in PoE inputs

�� Advanced H.265+ Video Compression

�� Build-in microphone to capture voice signal

�� Includes 4PCS 3 Megapixel Resolution POE outdoor IPC

�� Heavy-duty durable metal housing

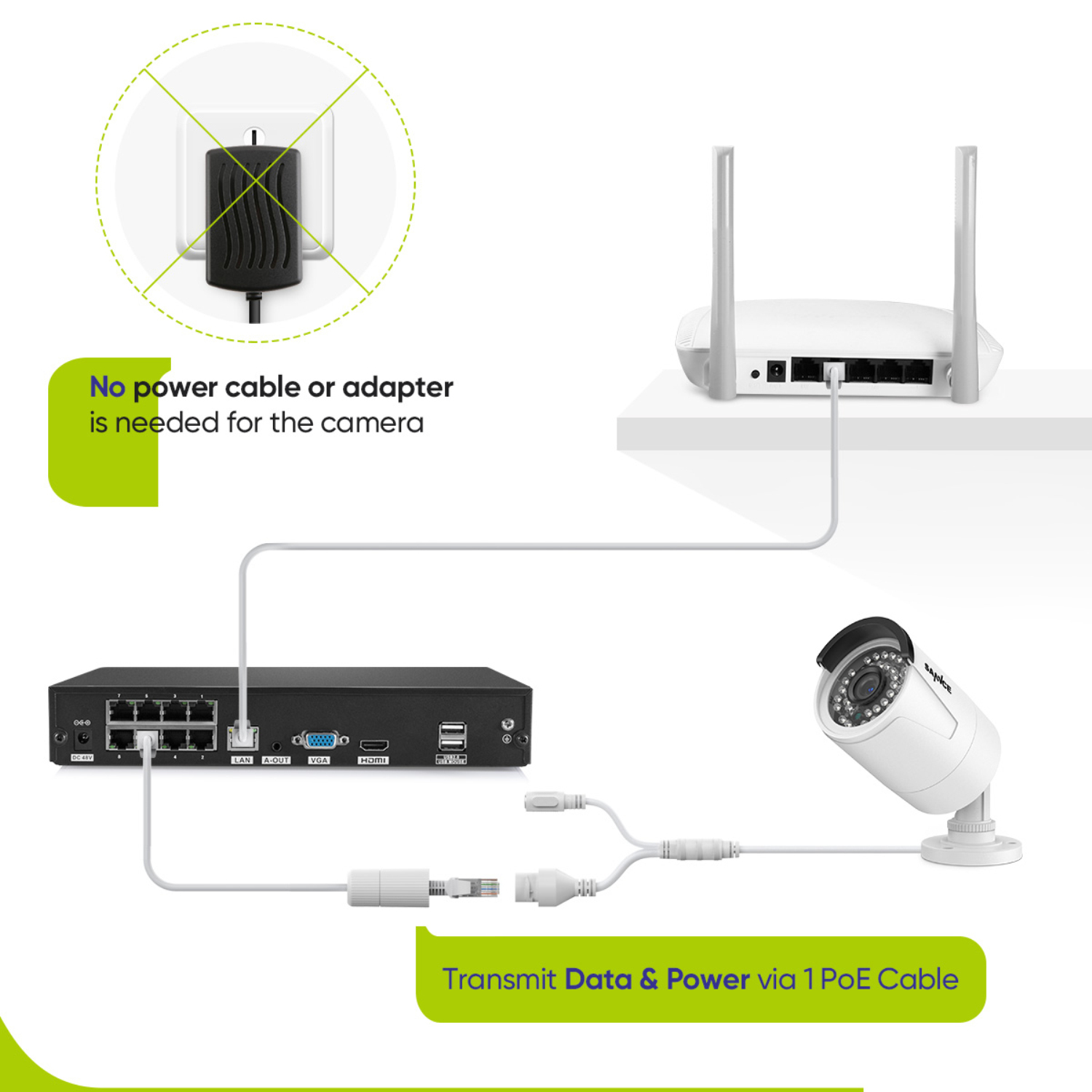

�� Support DC12V and PoE dual power supply

�� Up to 100ft night vision with SmartIR

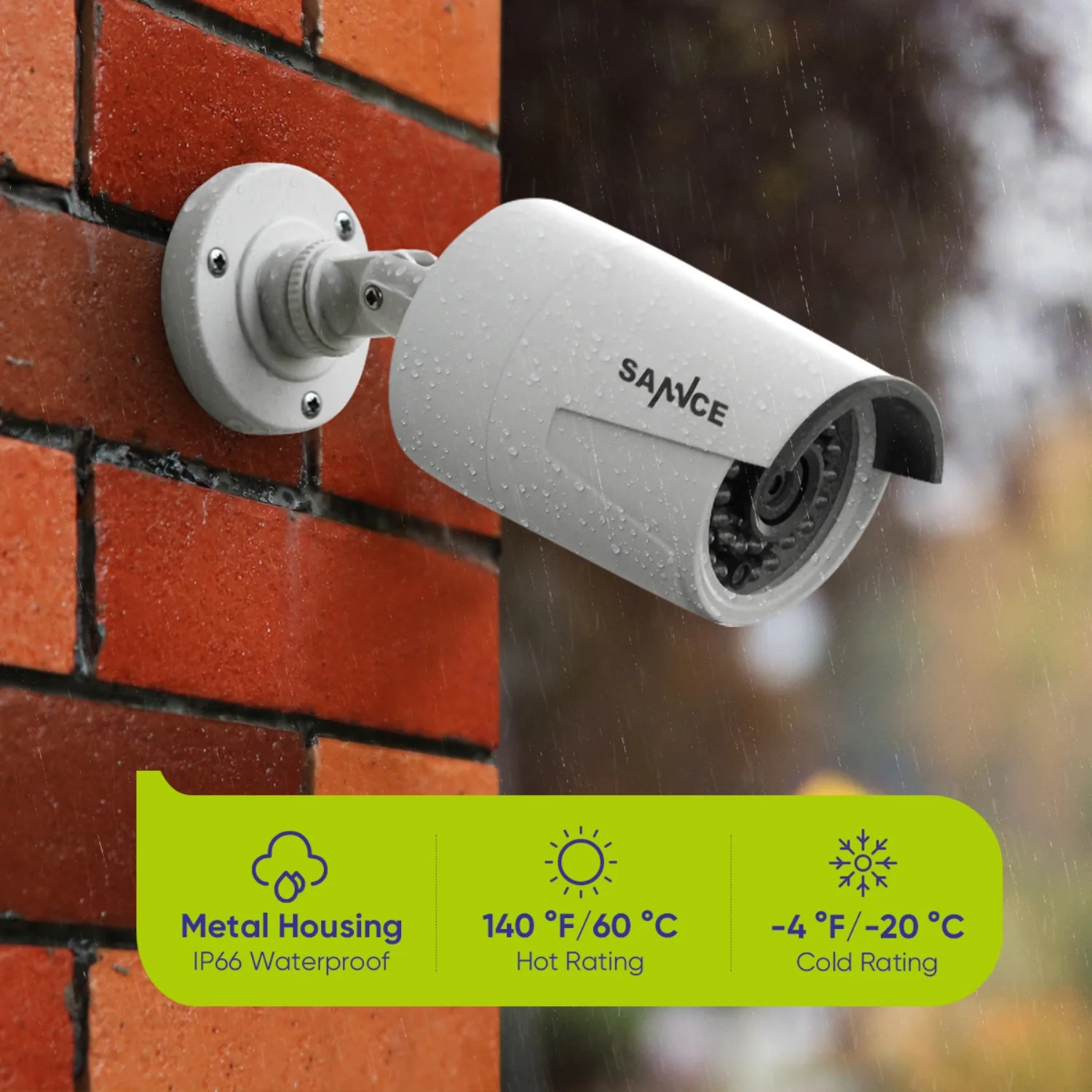

�� IP66 Dust and Waterproof Rating”

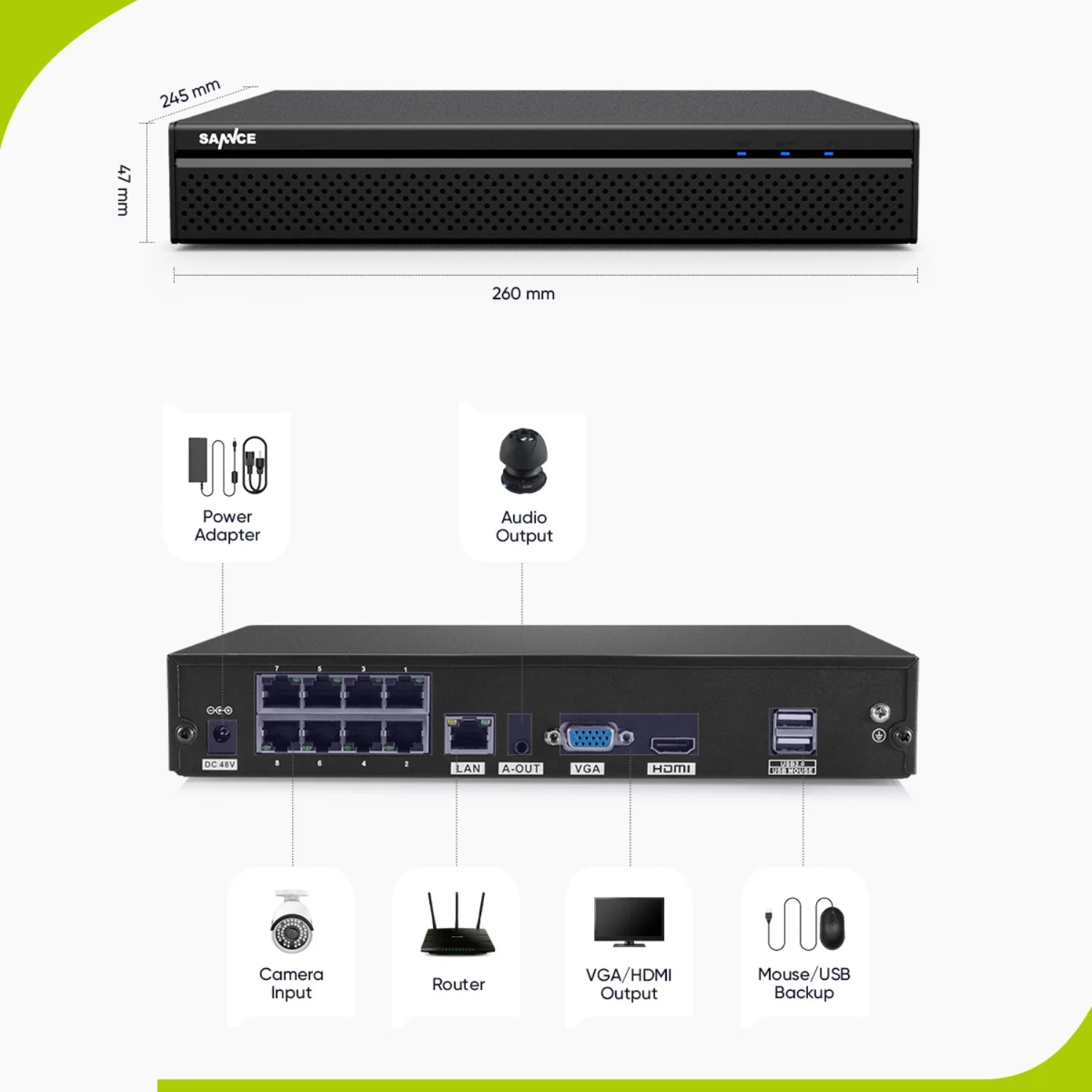

NVR

Video & Audio:

Video Compression: H.265+

IP Video Input: 8CH POE+2CH

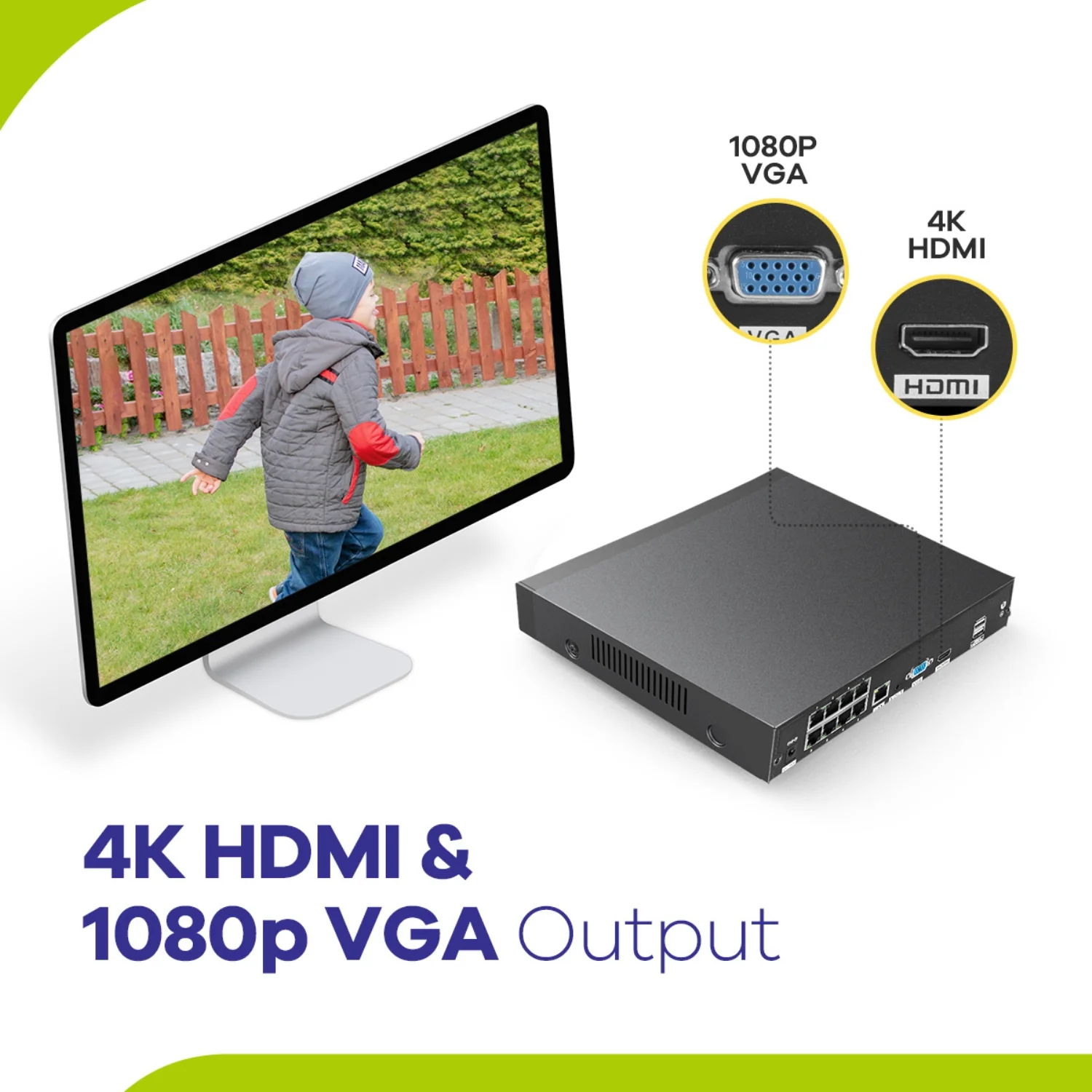

Video Output: HDMI Up to 4K

Audio Output: Support

Max Recording Resolution: Up to 8M(3860×2160)

Max Playback Resolution: Up to 8M(3860×2160)

Max Playback Channel: 4CH

Max Playback Capacity: 4CH 3MP/2CH 5MP/1CH 8MP

Hard Drive:

HDD: 1 SATA interface

HDD Capacity: Up to 12TB capacity

External Interface:

Network interface: RJ45x1(10/100/1000M)

POE: 8 Ports(IEEE802.3at/af)

USB: USB2.0x2

General:

Housing: Metal for main part

Operating Power: DC48V

Power Consumption: 10W(without HDD)

POE: Max 15W for single port

Working Temperature: 32 ��F �C 131 ��F /0 ��C �C 55 ��C

Dimensions(W x H x D): 10.2�� x 9.6�� x 1.9�� / 260x245x47mm

Weight (without hard disk): 1.68lbs / 760g(without HDD)

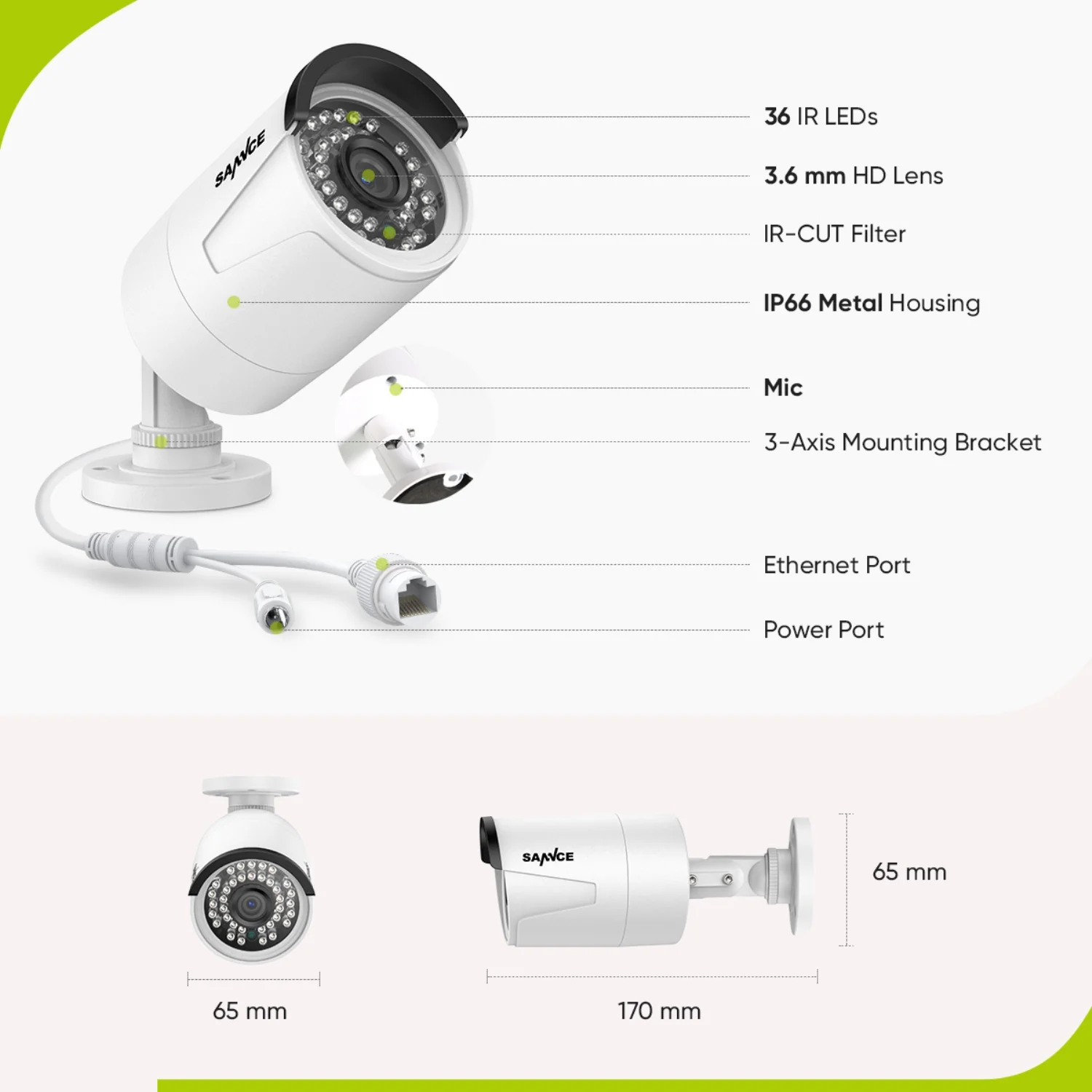

IP Camera

Video Resolution: 3MP(2304×1296)

Image sensor: 1/2.8″ Progressive Scan CMOS

Video compression: H.265+

Audio Compression: G.711A

Lens: 3.6mm

Angle of View: 70��

Number of Infra-Red LEDs: 36

Night Vision Distance: Up to 100ft/30m

Wide Dynamic Range: Digital WDR

IR Cut Filter: YES

Ethernet: RJ45x1(10M/100M)

General:

Housing: Metal

Operating Power: DC12V;PoE (802.3af)

Operating Temperature: -4 ��F �C 140 ��F /-20 ��C �C 60 ��C

Indoor/Outdoor: Indoor/Outdoor

Weatherproof Rating: IP66

Dimension (L x W x H): 6.7�� x 2.6�� x 2.6�� / 170 x 65 x 65mm

Weight: 0.772lbs / 350g

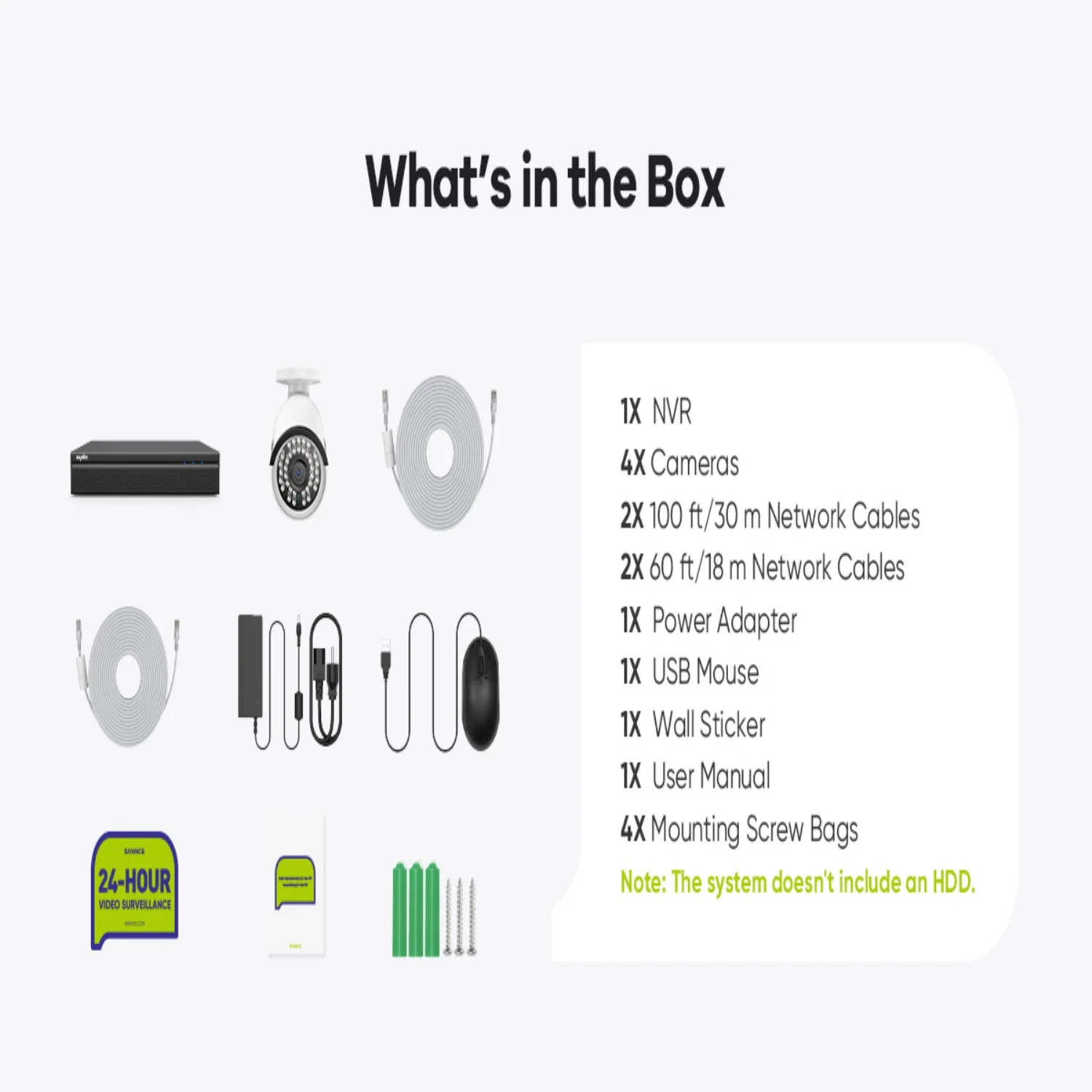

Packaging Contents

NVR: 1

Camera: 4

Ethernet Cable: 60ft/18m x2;100ft/30m x2

USB Mouse: 1

Power Adapter: 1

Mounting Screws Bag: 4

User’s Manual For NVR: 1

Package Dimension (L x W x H): 15.4�� x 10.6�� x 6.3�� / 390��270��160mm

Package Weight: 9.88lbs / 4.48Kg(without HDD)

• 3MP Full HD Live Stream & Playback: Thanks to 3MP ultra-clarity, details in the corner that was unnoticeable before are all shown to you. And you’re free to go smart playback of essential moments or sweet time.
• Sensitive Human Detection: With the latest Al Human Detection, this security camera detects human shapes correctly. It sends you alerts via pushing and emails, letting you know the real threats in no time and cutting down unwanted alarms.
• Intriguing Two-Way Audio: The camera not only delivers images but also transfers voice. Also, with the built-in mic and speaker, it’s quite easy to talk with your family as well as intruders.
• Support Up to 10CH Cameras: The NVR is compatible with 10CH full HD cameras or 8CH PoE cameras plus 2CH IP cameras, enough to handle a security web build at your home or business.
• Stay Informed with Remote Control: It’s convenient to get a live view of your business or homewith an app on your phone, tablet, or PC. Wherever you’re, everything is under your control thanks to remote motion alarms, live view, and record replay.
• Instant Alerts for Your Quick Response: For more accurate alerts, you may cutomize the specific areas you care about. Whenever there’s motion detection, immediate pushes and email pop up on your phone and mailbox, allowing you to make a quick response in essential moments.
