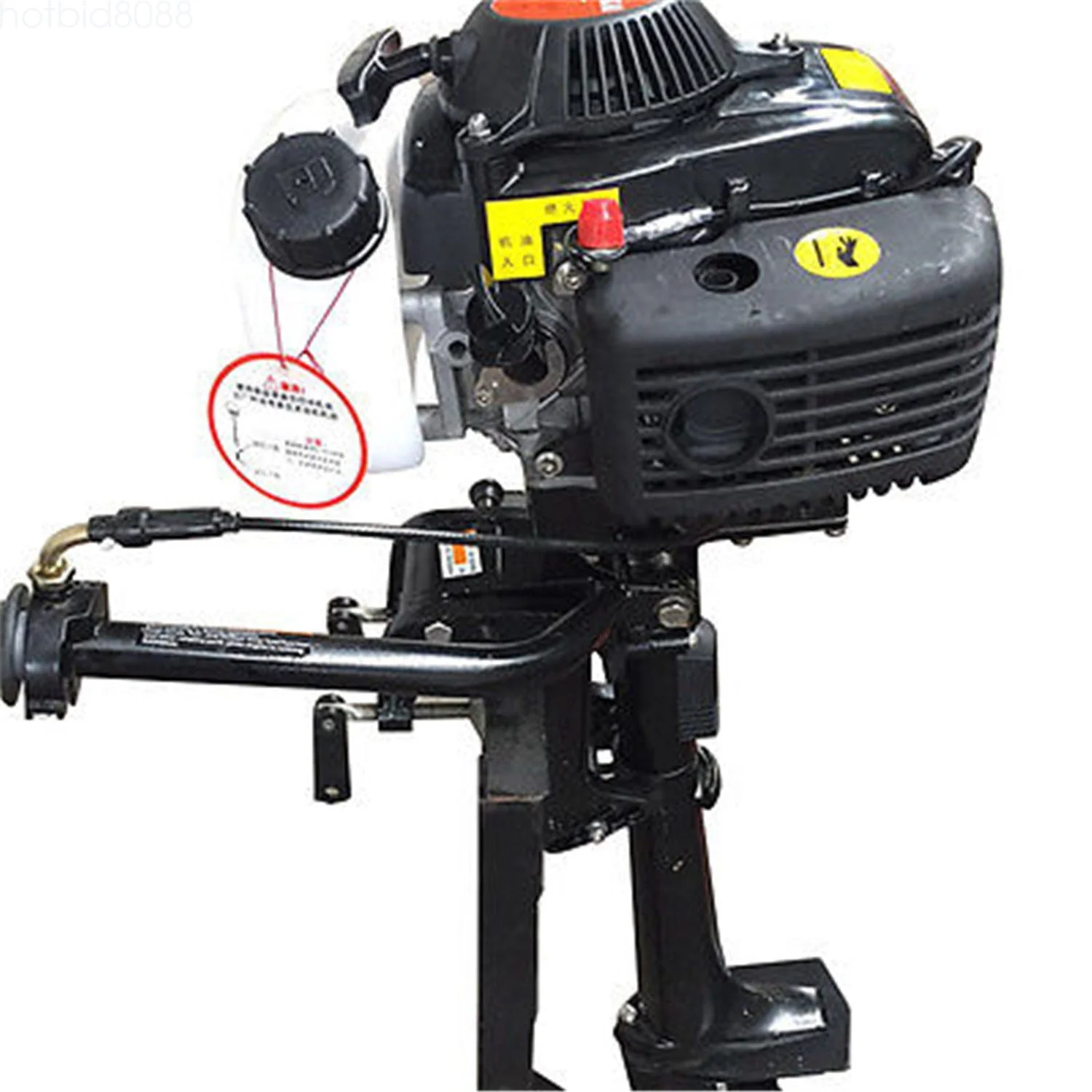

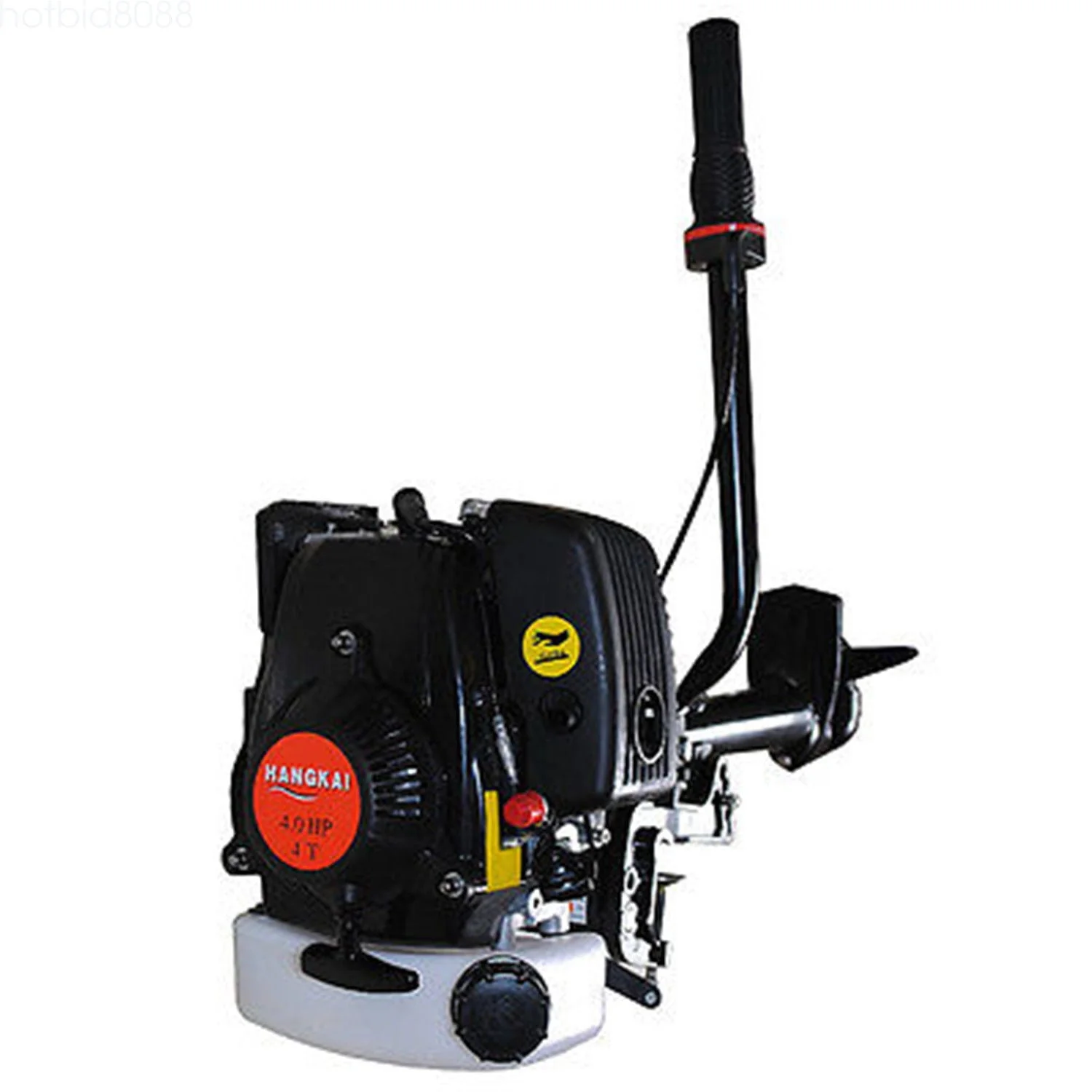

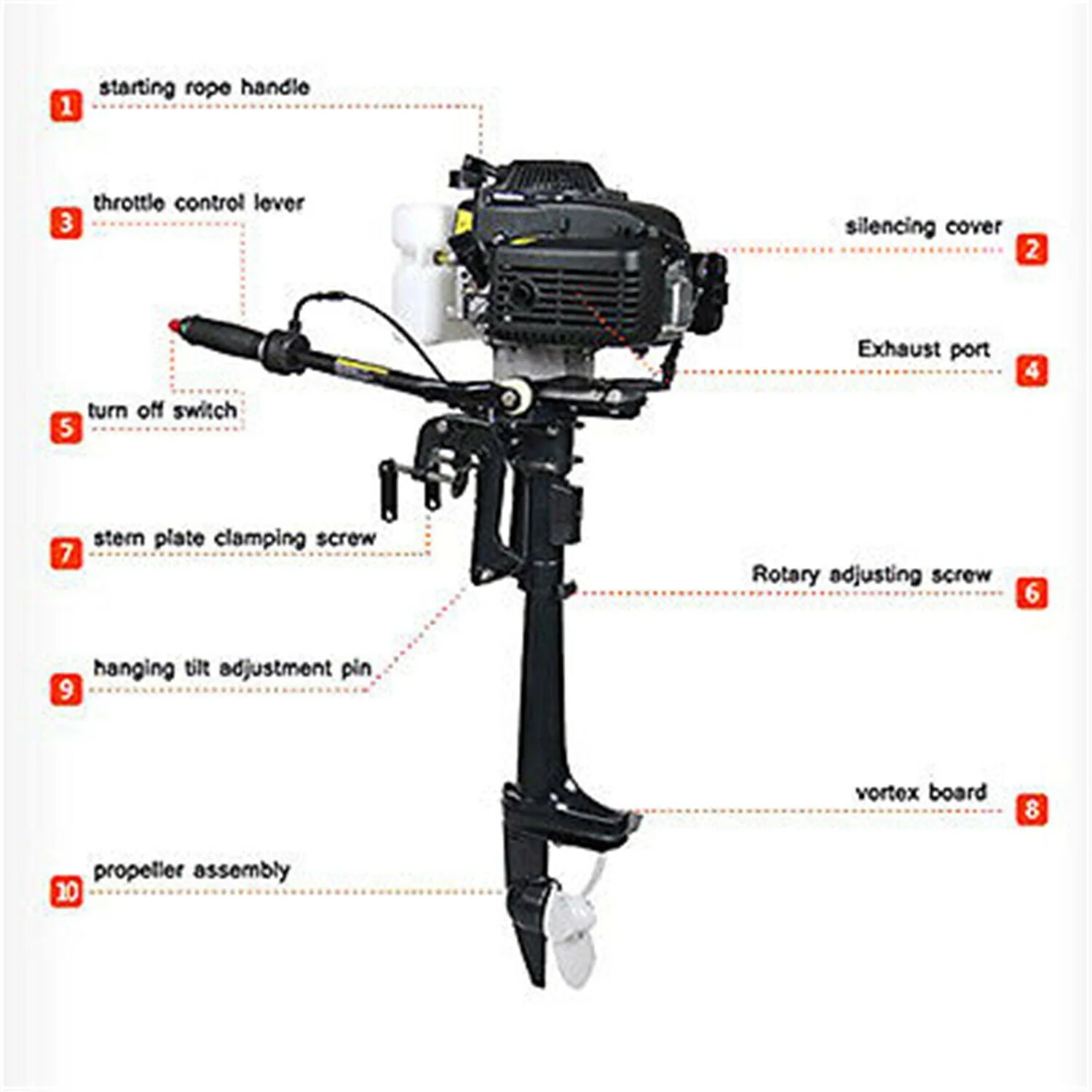

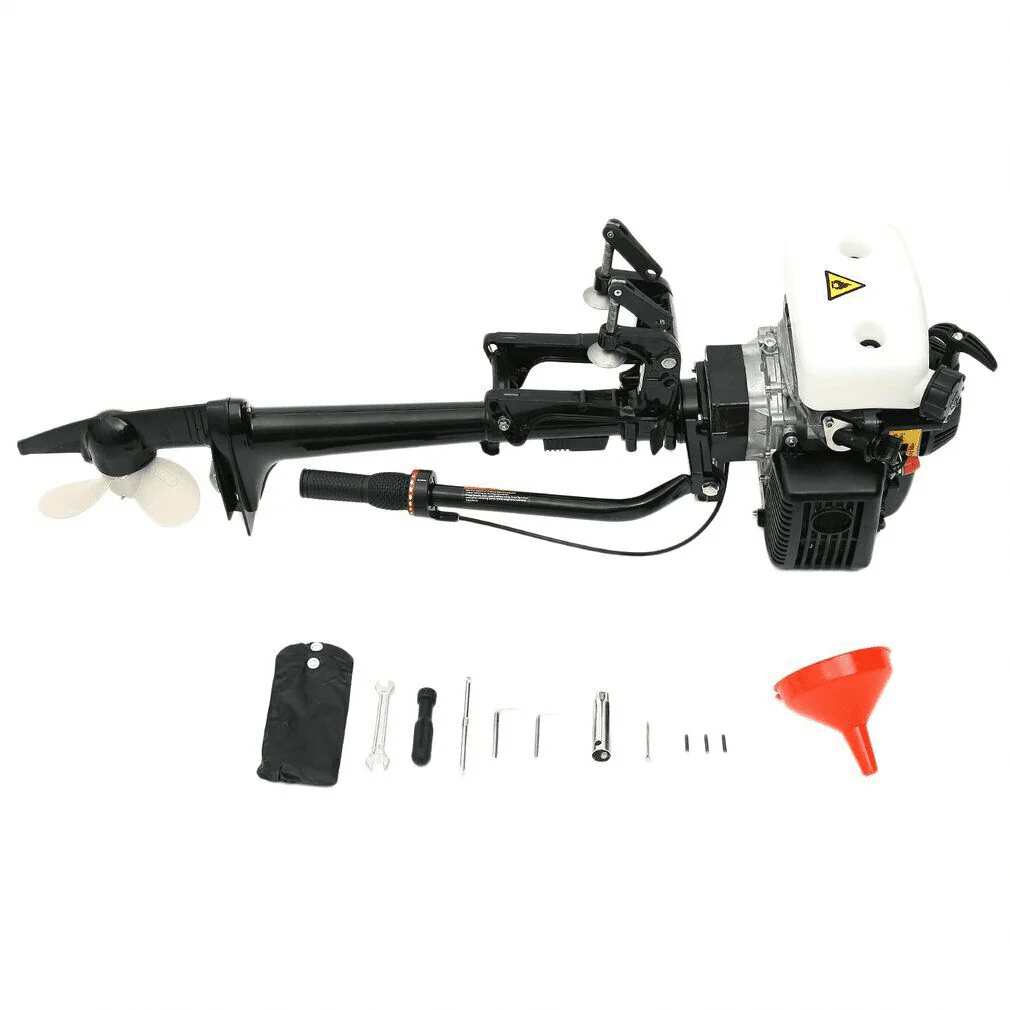

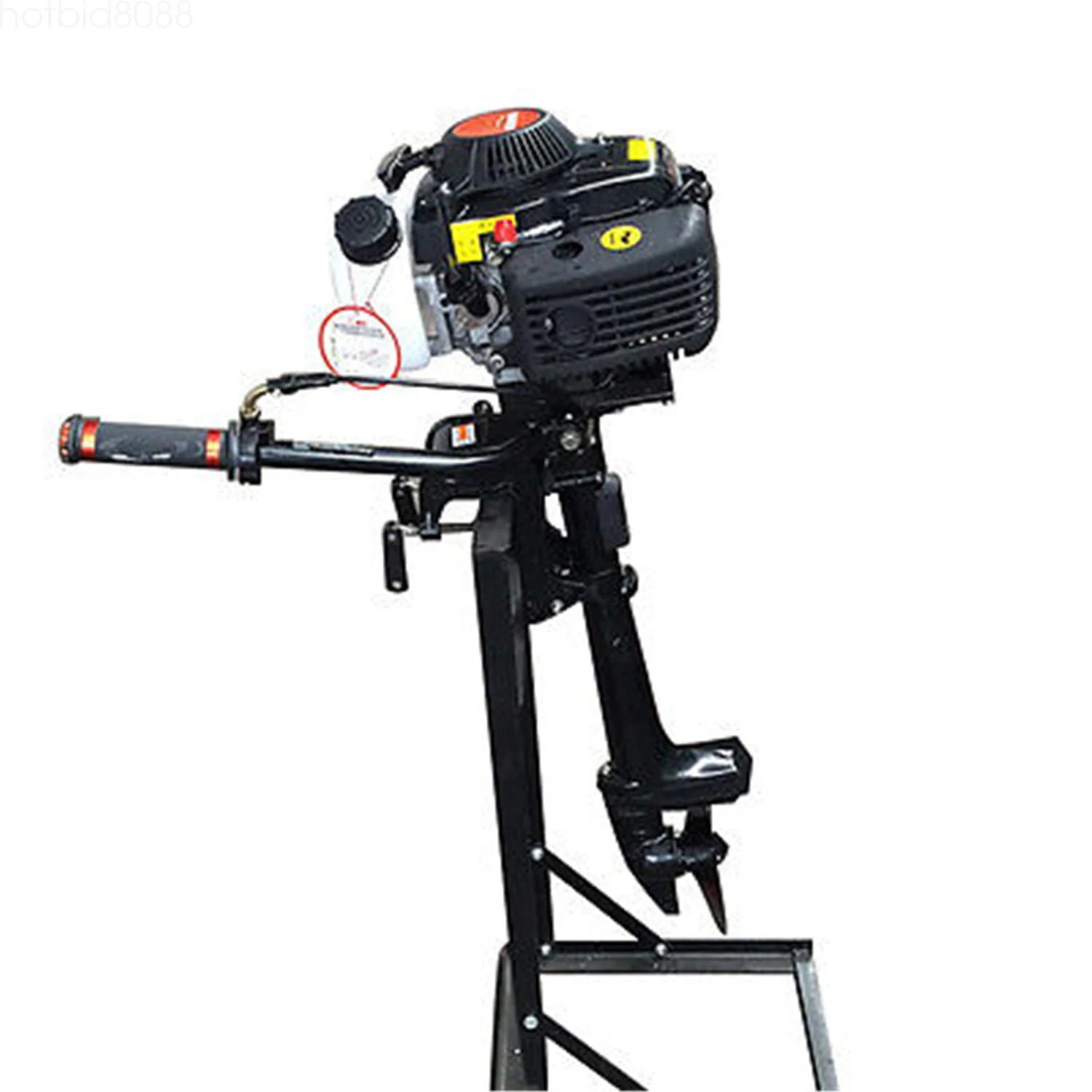

Description:

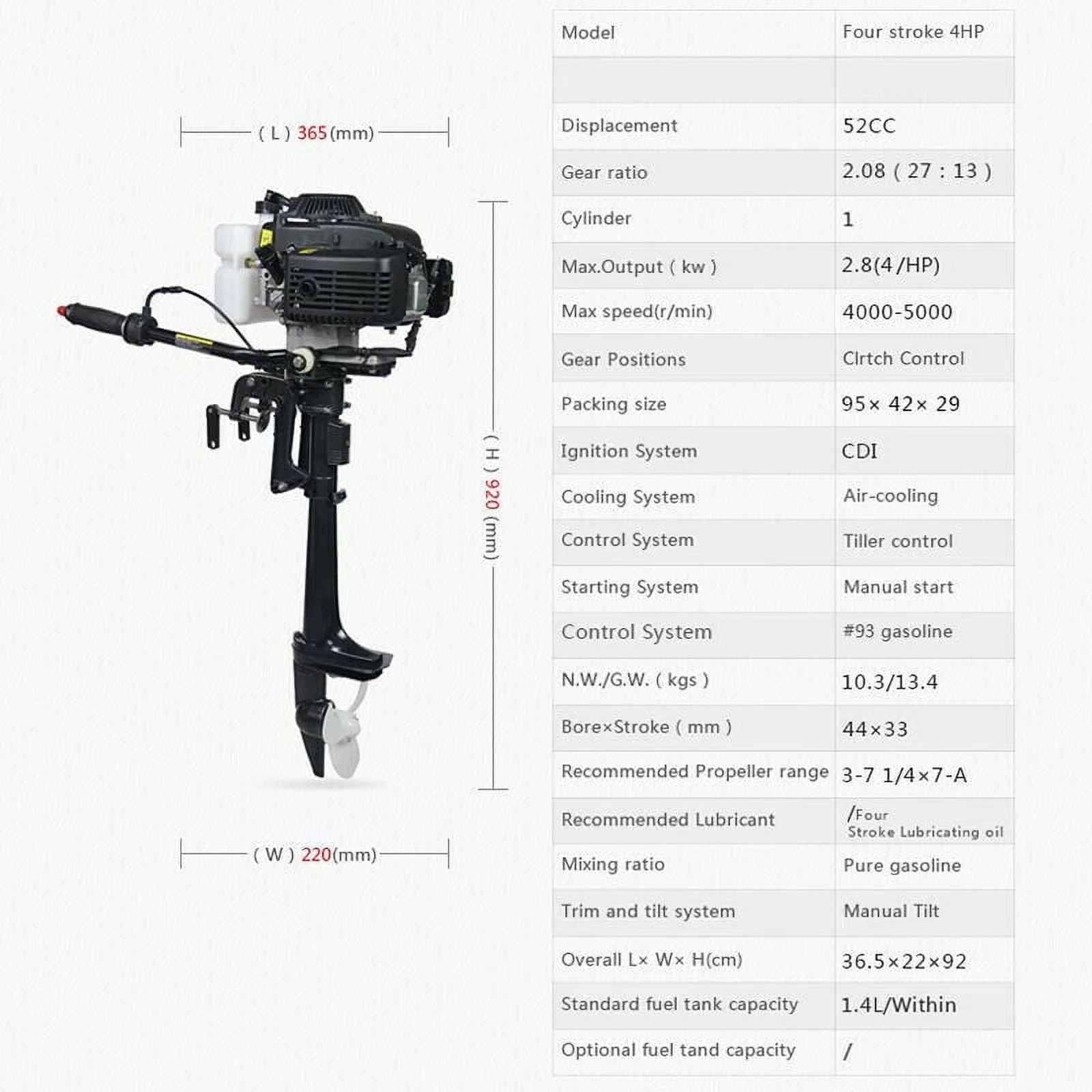

Type: 4 stroke 4 horsepower
Capacity: 52cc
Transmission ratio: 2.08 (27:13)
The number of cylinders: 1
Maximum speed: 4000-5000
Maximum power: 2.8 kW /4 HP
Shift position: clutch control
Package volume: 95x40x30 cm
Ignition system: CDI
Cooling system: air cooling
Starting method: Manual start
Refueling: No. 93 gasoline

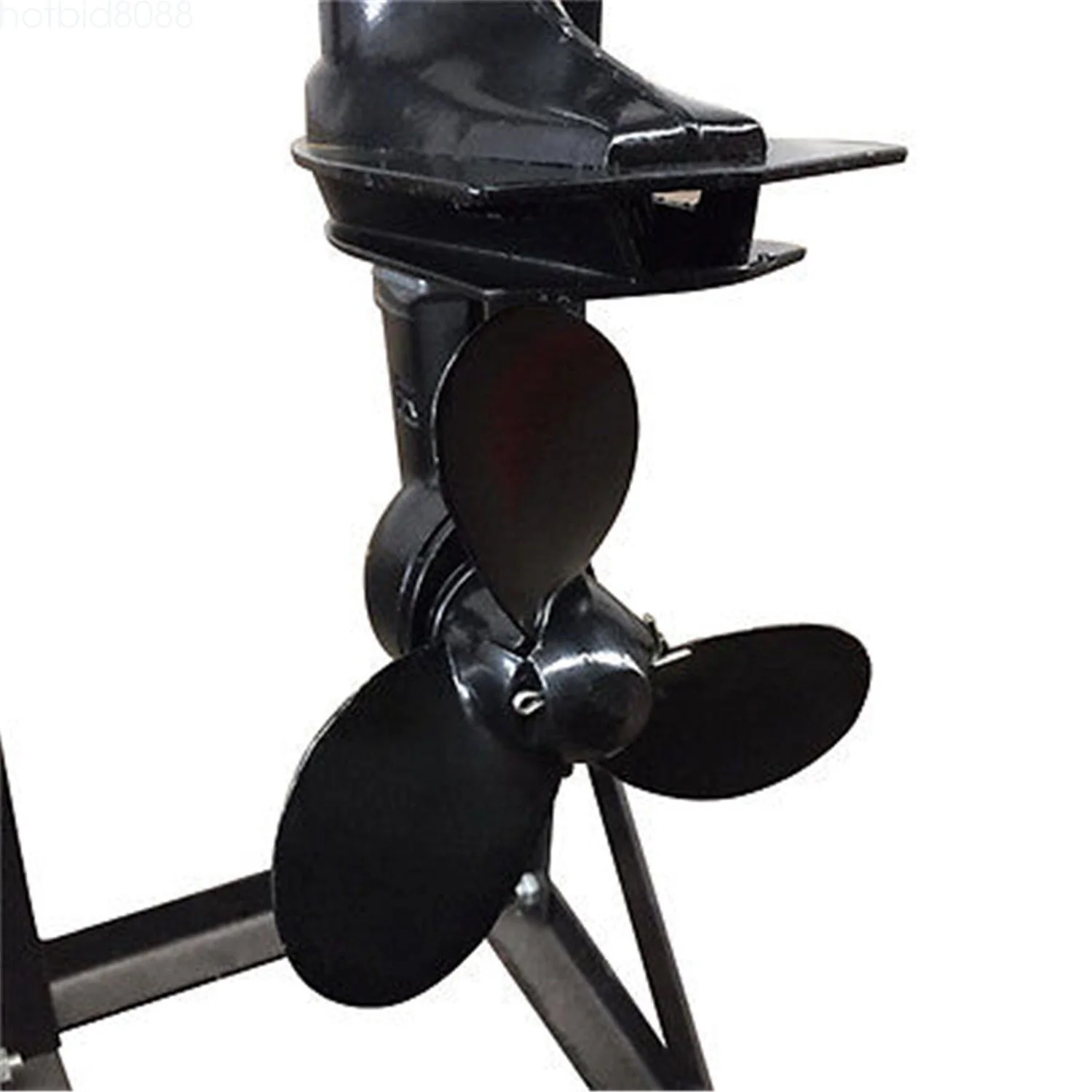

Propeller size: 7 1/4X7-A
Short shaft ：40cm
The maximum fuel consumption: 1.4 liters / hour
Recommended Lubricant:4 stroke lubricating oil
Mixing ratio:Pure gasoline
Trim and tilt system:Manual Tilt
Start-In-Gear protection/clutch feature prohibits prop rotation while idling convenience
Features 360 degree steering rotation for reverse without gear shifting
Cooling system: air cooling

Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.
Don’t do the following will avoid cylinder Scoring:
1, start the motor on bank
2, use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!

When there is no water coming out from the motor,please stop using it immediately,then check the impeller of Water pump or check if the water outlet has been blocked.
Note:
Must Read before use!
Firstly,Fill the gear oil (open gear box lid and fill it).
Secondly, Fill NO. 92 petrol, lightly press oil pump 6-10 times.
Thirdly,Fill engine oil don’t exceed the head of the pattern.
Forthly,turn the throttle to the start up and turn the accelerator gets up to 50%. Then,Rapidly pull the starter line.
After the motor start,please turn the throttle to running state.
Then, it can be operated now.
