Infinity Reference-7005A Reference Series 5-Channel, 50w X 4, 500w X 1 Amplifier With Bass Knob

Infinity’s Reference 7005A Five-Channel amplifier will add plenty of muscle to your music without breaking a sweat, and it’ll look good doing it. This powerhouse delivers 700-Watts RMS to your Speakers and a subwoofer, and its Class D design ensures the amp’s high output will put minimal strain your vehicle’s electrical system. Speaker-level inputs allow this amplifier to work in almost any system, even if you’re hanging on to your factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.

RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver’s seat.

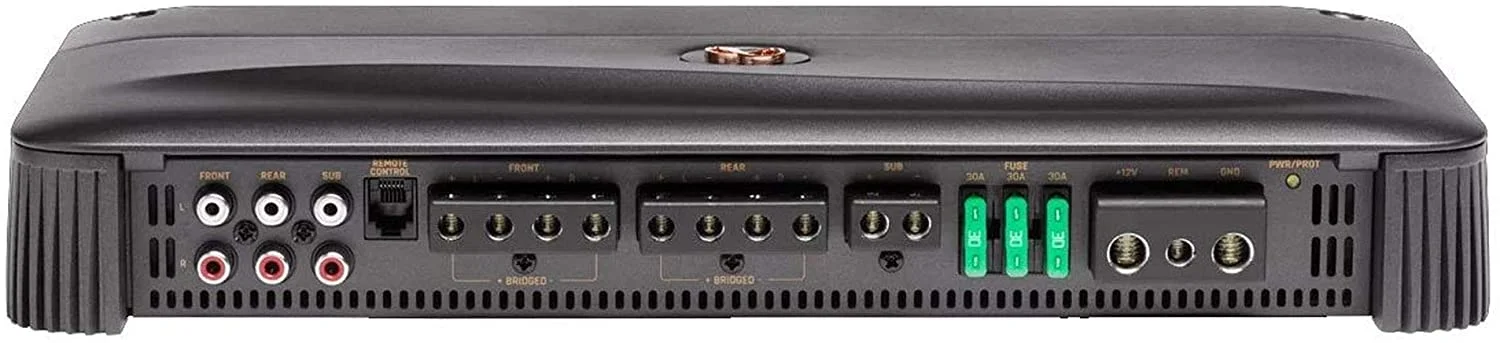

High and low level input
Speaker-level and low-level inputs allow the Reference 7005A to integrate with both aftermarket and factory car stereo systems.

Compact size
The Infinity Reference 7005A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

Full on-board protection
On-board circuitry protects the Reference 7005A from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

General Specifications –
? 50 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 at 2 ohms
? Class D amp technology
? frequency response, 10-320 Hz
? variable low-pass filter (32-320 Hz, 12 dB/octave)
? variable bass boost (0-12dB at 45Hz)
? phase switch (0, 180 degrees)
? wired remote level control included
? preamp inputs and outputs
? speaker-level inputs (speaker wire-to-RCA adapters included)
? 4-gauge power and ground leads recommended �� wiring and hardware not included with amplifier
? fuse rating: 30A x 3

• Power your whole stereo with one amplifier – less wiring than running a separate subwoofer amplifier.
• Unlike many amplifiers available at similar prices, Infinity Reference amps feature variable electronic crossovers and bass boost circuit to allow for fine-tuning.
• The Infinity Reference 7005A amplifier feature a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
• The on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists.
• RBC wired remote – The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver’s seat.
