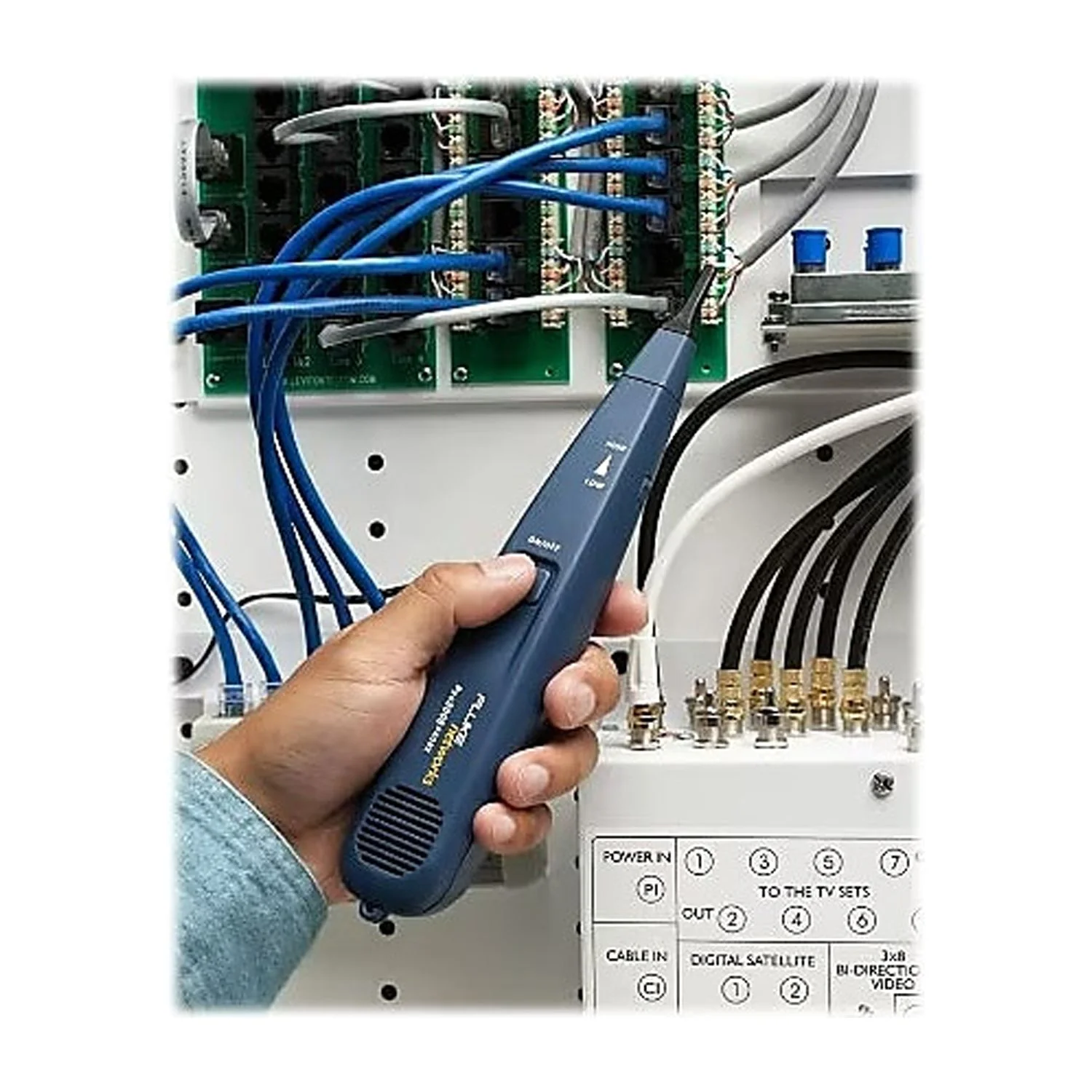

Analog Tone and Probe is the best choice for toning and tracing wire on non-active networks, and specifi-cally for identifying individual pairs with SmartTone technology. Angled bed-of-nails clips allow easy access to individual wires, and the RJ11 connector is ideal for use on telephone jacks. The large loud speaker on the probe allows to hear through drywall, wood or other enclosures to find wires quickly and easily. Loud tones can be send up to 10 miles (16 kilometers) on most cables. Suitable for any wire identification job.

• Sold as 1 Each.
• Interfaces/ports: Tone mode, 1 x RJ 11. Connectors: BNC, RJ 11. Loud large speaker amplifies tone through walls, enclosure, wood or plaster. Application/usage: Cable testing.
• Material: Copper. Output voltage level in continuity mode: 8 Vdc with fresh battery, over voltage protection: 60 VDC in toner/polarity mode. Tests, tools and measurements: Toning. SmartTone provides five distinct tones for exact pair identification.
• Storage temperature: 40 – 158 deg F. Frequency: 1000/1500 Hz nominal, battery: 9 V alkaline. Quick twist tip for easy replacement, easy to use adjustable volume control dial. Loud tones can be send up to 10 miles (16 kilometers) on most cables, this tone change you hear through the probe positively verifies the correct wire pair.
• Humidity range operating: 5 – 95% (non condensing). On/off push button. Includes: analog toner, probe. Warranty: 18 months limited.
