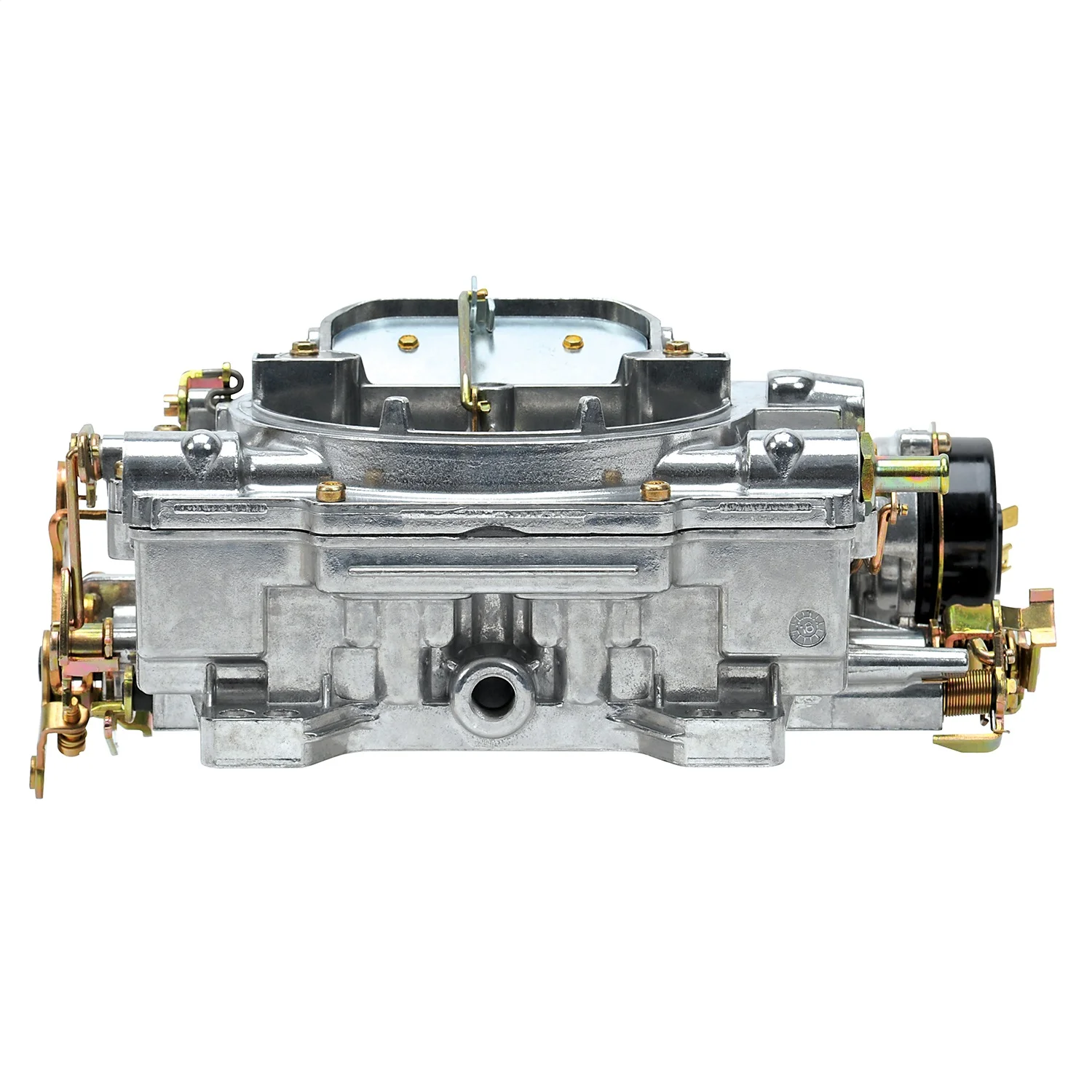

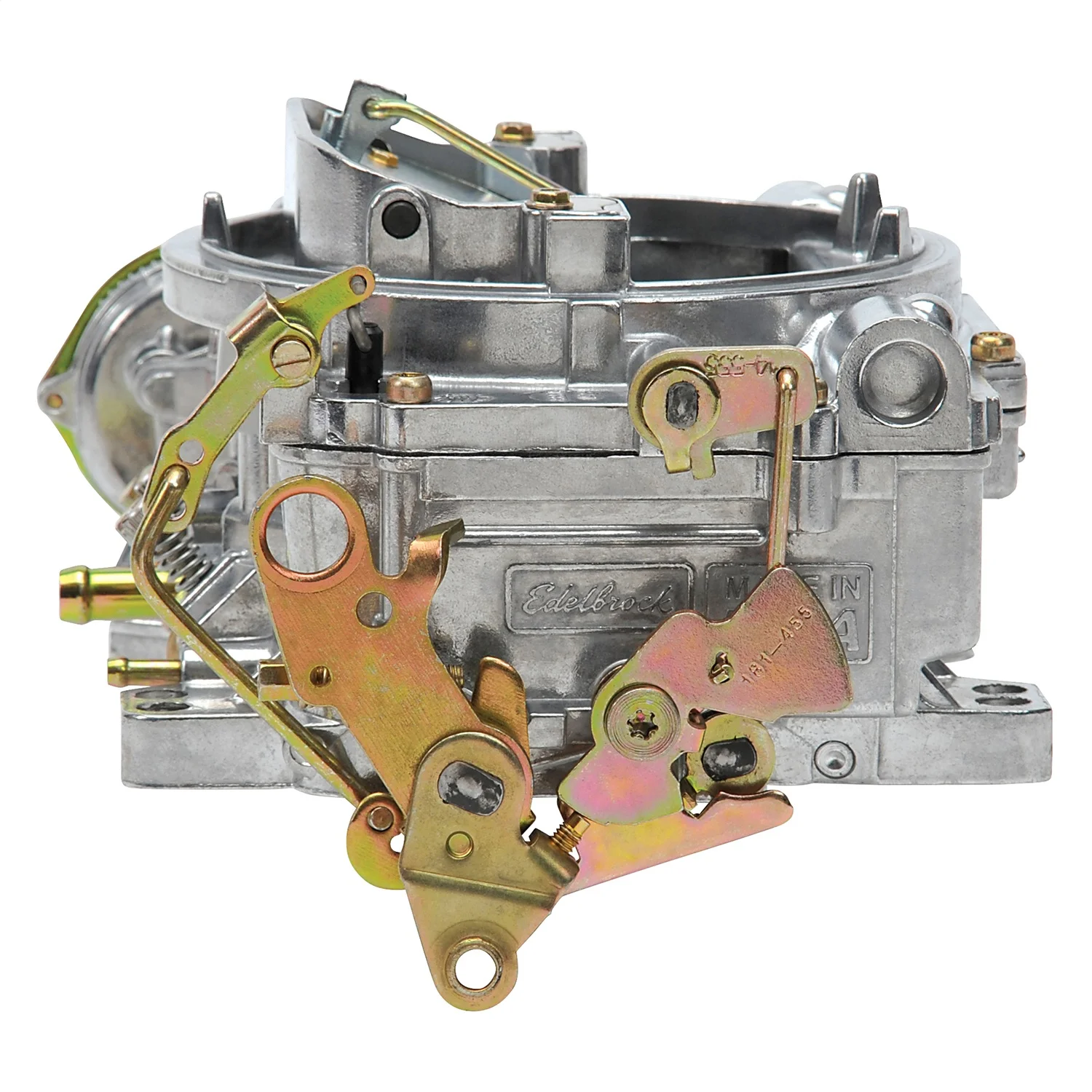

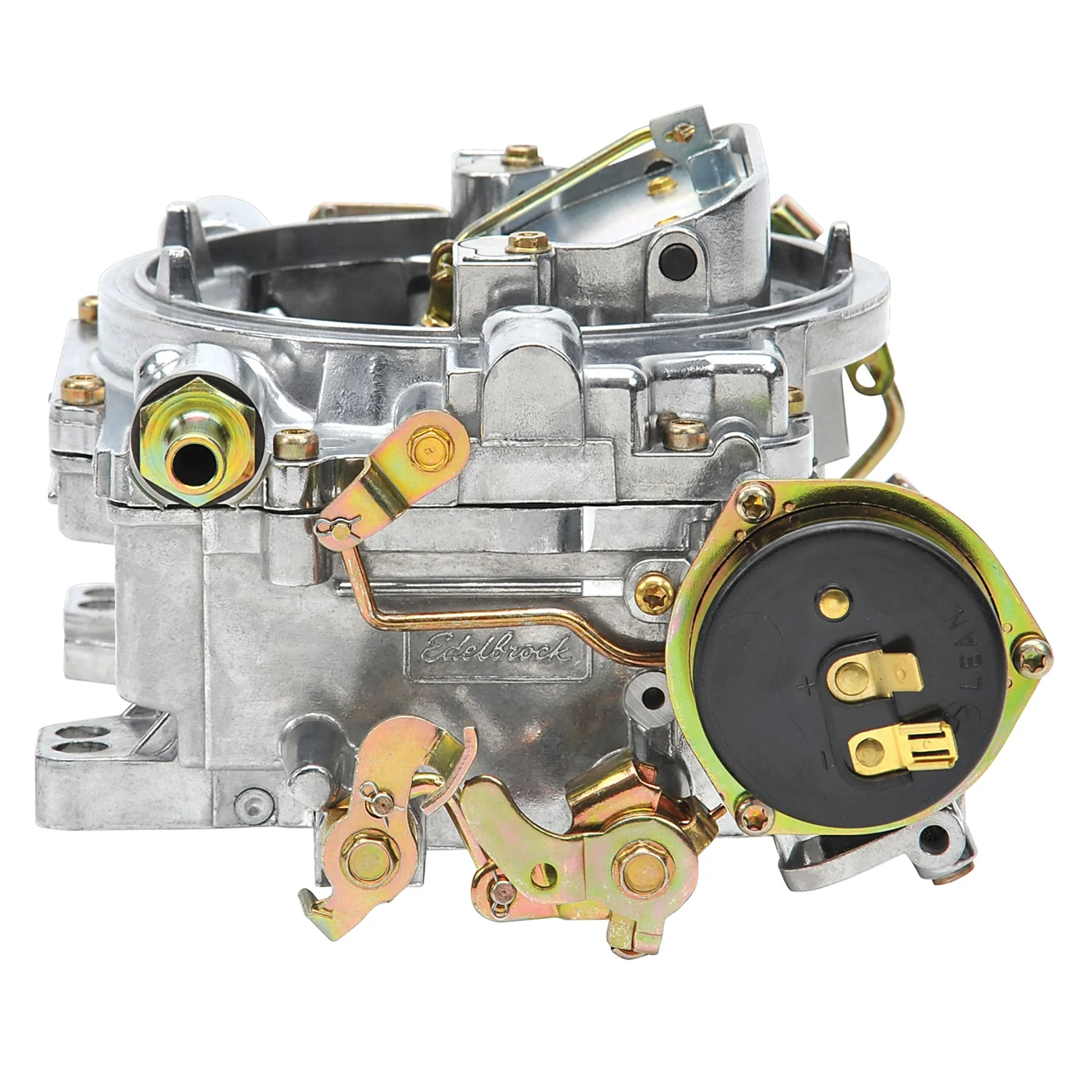

Edelbrock Performer Series EPS 800 Carburetor; 800cfm; Square Flange; Electric Choke; w/o EGR; Incl. Metering Jets/Metering Rods/Step Up Spring;

Designed and calibrated for maximum street performance with most Performer RPM, RPM Air-Gap and Torker II manifolds and with Performer manifolds on large cubic-inch engines. Dyno tests proved that the EPS 800 carb outperformed a Holley #3310 carb out-of-the-box by 26 ft-lbs of torque and 22 hp on a small-block Chevy engine equipped with an Edelbrock Performer RPM power package. Features include a high-capacity accelerator pump and an improved primary and secondary cluster design. EPS 800 has the same superior features as the rest of the Performer Series line such as out-of-the-box performance and 2-piece design. Comes with: Metering Jets – Primary .113, Secondary .101; Metering Rods – .071 x .047; Step-Up Spring – orange (5″ Hg). Use our Carb Stud Kits #8008 or #8024 if needed.

General Information

• Manufacturer: Edelbrock
• Manufacturer Part Number: Edelbrock
• UPC: 085347014132

Characteristics

• Type: Automotive
• Usage: Street/Hi-Performance
• Barrel: Four
• CFM: 800
• Choke: Electrical
• Emission: Without EGR
• Flange: Square Bore
• Finish: Ball Burnished

Fitment Guide

• 1965-1976 Cadillac Calais
• 1975-1979 Cadillac Commercial Chassis
• 1964-1979 Cadillac DeVille
• 1964-1978 Cadillac Eldorado
• 1965-1979 Cadillac Fleetwood
• 1964-1964 Cadillac Series 60 Fleetwood
• 1964-1964 Cadillac Series 62
• 1964-1964 Cadillac Series 75 Fleetwood
• 1961-1975 Chevrolet Bel Air
• 1961-1972 Chevrolet Biscayne
• 1973-1973 Chevrolet Blazer
• 1972-1972 Chevrolet Brookwood
• 1975-1980 Chevrolet C10
• 1970-1974 Chevrolet C10 Pickup
• 1970-1980 Chevrolet C10 Suburban
• 1975-1986 Chevrolet C20
• 1970-1974 Chevrolet C20 Pickup
• 1970-1986 Chevrolet C20 Suburban
• 1975-1986 Chevrolet C30
• 1970-1974 Chevrolet C30 Pickup
• 1970-1972 Chevrolet Camaro
• 1966-1976 Chevrolet Caprice
• 1970-1973 Chevrolet Chevelle
• 1966-1974 Chevrolet Corvette
• 1970-1975 Chevrolet El Camino
• 1973-1974 Chevrolet G10 Van
• 1976-1976 Chevrolet G20
• 1973-1974 Chevrolet G20 Van
• 1975-1976 Chevrolet G30
• 1973-1974 Chevrolet G30 Van
• 1961-1976 Chevrolet Impala
• 1976-1980 Chevrolet K10
• 1974-1974 Chevrolet K10 Pickup
• 1970-1972 Chevrolet K10 Suburban
• 1976-1980 Chevrolet K20
• 1973-1974 Chevrolet K20 Pickup
• 1973-1985 Chevrolet K20 Suburban
• 1977-1986 Chevrolet K30
• 1970-1974 Chevrolet K30 Pickup
• 1976-1978 Chevrolet K5 Blazer
• 1970-1972 Chevrolet Kingswood
• 1973-1975 Chevrolet Laguna
• 1973-1975 Chevrolet Malibu
• 1970-1975 Chevrolet Monte Carlo
• 1970-1970 Chevrolet Nova
• 1987-1988 Chevrolet R30
• 1989-1989 Chevrolet R3500
• 1970-1972 Chevrolet Townsman
• 1987-1988 Chevrolet V30
• 1989-1989 Chevrolet V3500
• 1960-1971 Chrysler 300
• 1959-1975 Chrysler Imperial
• 1959-1978 Chrysler New Yorker
• 1959-1978 Chrysler Newport
• 1959-1977 Chrysler Town & Country
• 1963-1965 Dodge 880
• 1974-1974 Dodge B100 Van
• 1975-1978 Dodge B200
• 1974-1974 Dodge B200 Van
• 1975-1978 Dodge B300
• 1977-1979 Dodge CB300
• 1970-1970 Dodge Challenger
• 1967-1974 Dodge Charger
• 1967-1976 Dodge Coronet
• 1975-1978 Dodge D100
• 1973-1974 Dodge D100 Pickup
• 1978-1978 Dodge D150
• 1975-1978 Dodge D200
• 1973-1974 Dodge D200 Pickup
• 1975-1978 Dodge D300
• 1973-1974 Dodge D300 Pickup
• 1961-1962 Dodge Dart
• 1961-1961 Dodge Lancer
• 1965-1978 Dodge Monaco
• 1961-1973 Dodge Polara
• 1974-1978 Dodge Ramcharger
• 1975-1977 Dodge Royal Mon
