Specifications

• Warranty: 5 years
• Nominal Voltage: 12.8V
• Rated Capacity: 100Ah
• Battery Energy: 1280Wh
• BMS Boad: 100A
• Recommend Charge Current: 20A
• Max Charge Current: 50A
• Max. Continuous Discharge Current: 100A
• Peak Discharge Current: 300A(about 2-3 seconds)
• Charge/Discharge Temperature Range: 0-45��C/-20-60��C
• Recommend Charge Voltage: 14.4V
• Max Charge Voltage: 14.6V
• Discharge Cut-Off Voltage: 10.8V
• Cell Type: LiFePO4 Prismatic A grade
• Cycle Life: 4000-15000 Cycles
• Max expansion: 4P/4S/4P4S
• Terminal: M8 bolts, 9/16L, 5/16D(inch)
• Shell material: ABS+PC
• Protection level: IP65
• Battery Size: L10*W5.12*H7.87 inch
• Battery Weight: 20lbs

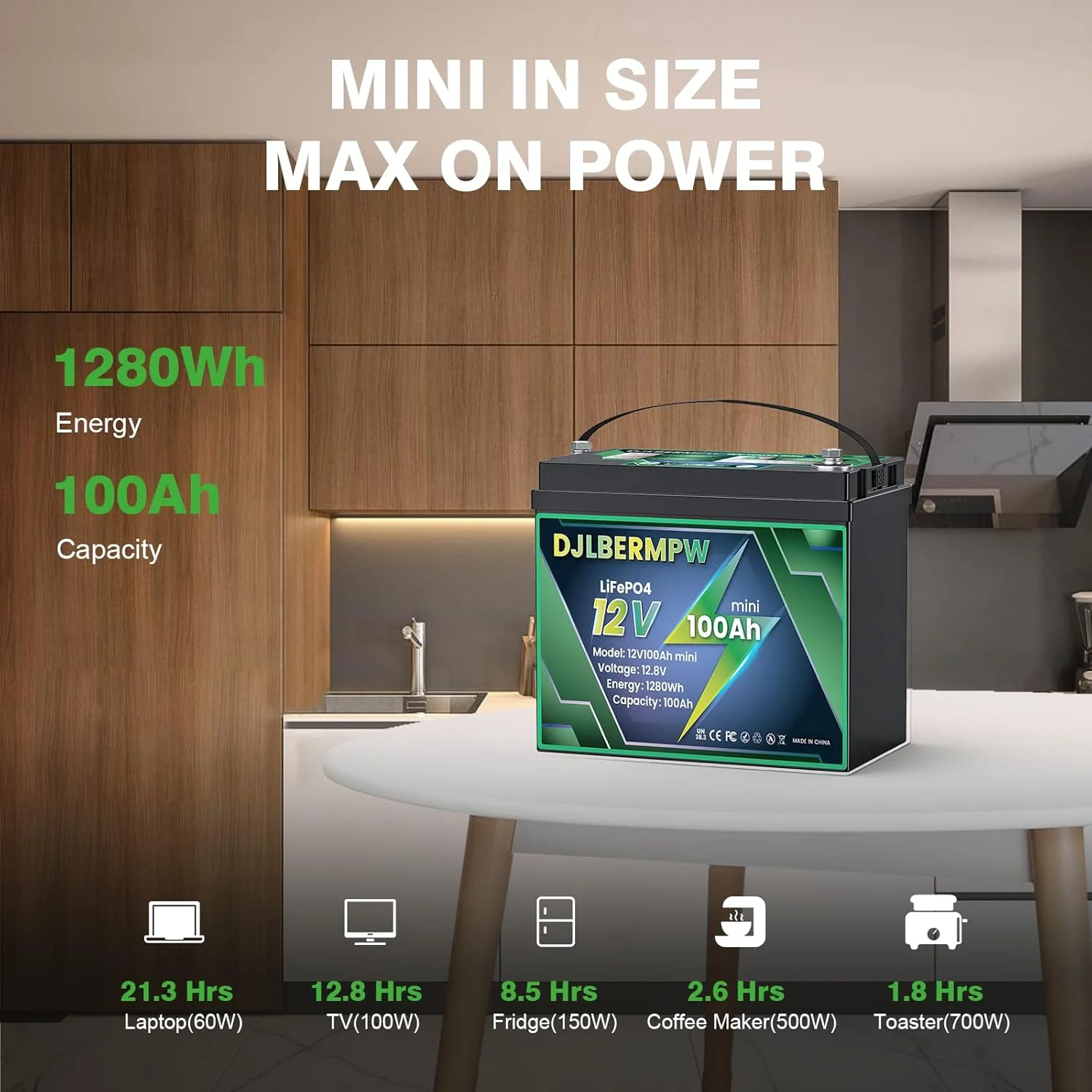

• The mini 12V 100Ah liFePO4 battery can provide more than 4000 cycles with a service life of up to 10 years. This LiFePO4 batteries is made of A-grade cell, which has better stability, higher energy density, higher power output and lower self-discharge rate.

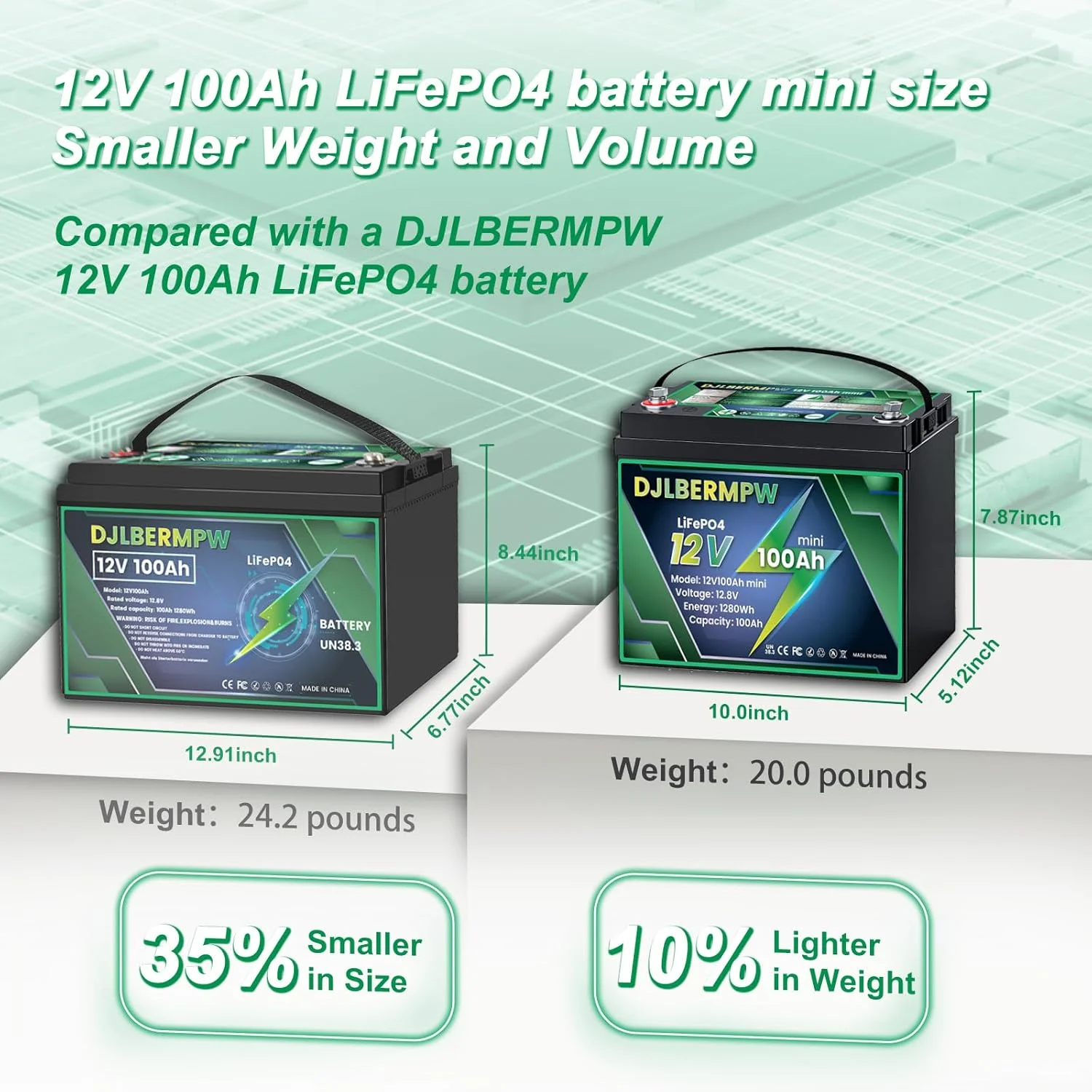

• The 12V 100Ah lithium battery mini size is 10*5.12*7.87in, 35% smaller than most 12V 100Ah lithium batteries. Weigh only 20 lbs, they are 80% lighter than lead acid batteries, yet still provide 100% 1280Wh of energy. Only 5 hours of fast charge time when charged with a 14.6V 20A LiFePO4 battery charger.

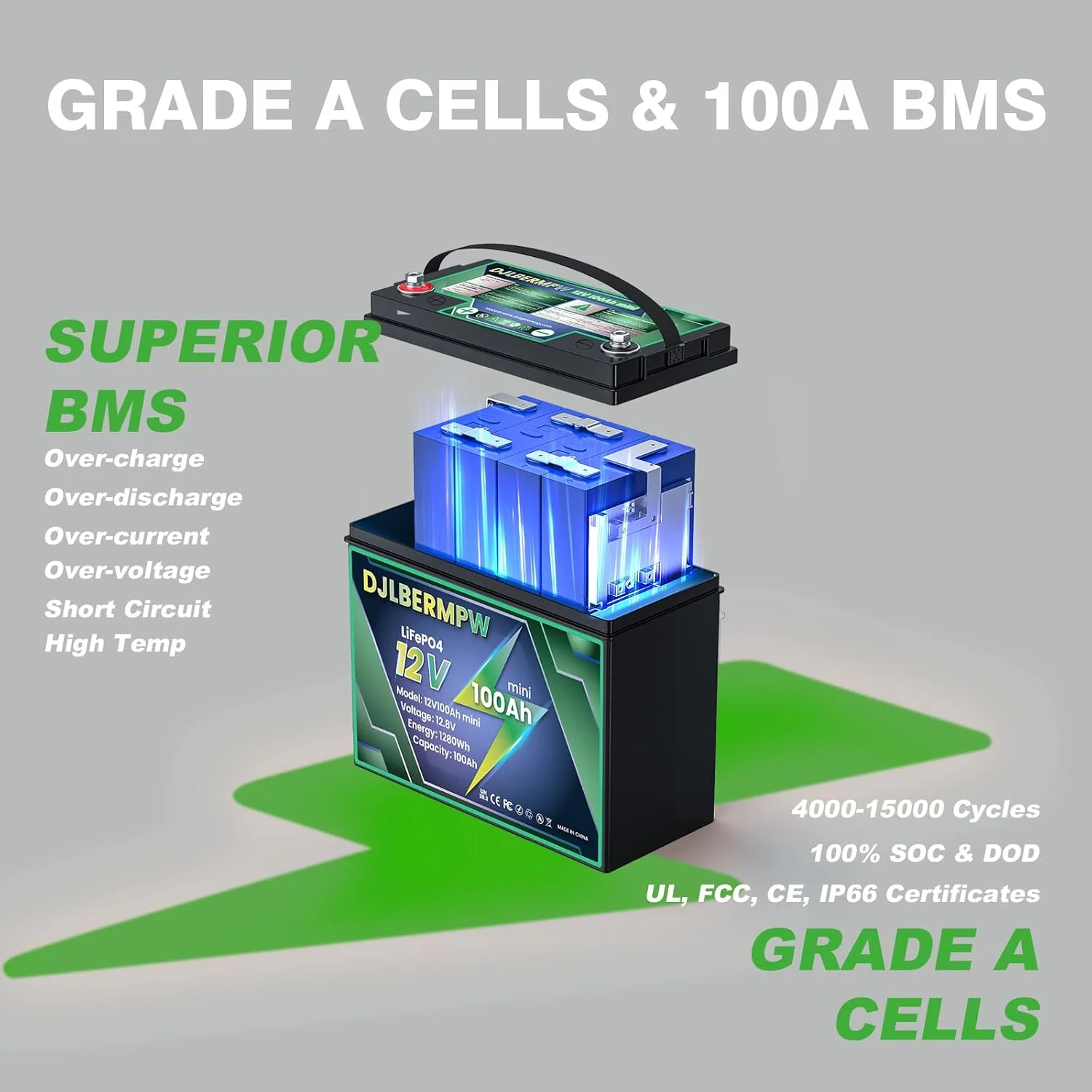

• The built-in BMS protects the 100ah lifepo4 mini battery from overcharging, over-discharging, over-current, short-circuiting, and low self-discharge rates, ensuring up to 1 year of no maintenance storage.IP66 rated, waterproof and dustproof, making your outdoor life more convenient.
• DJLBERMPW 12V 100ah lifepo4 battery provides 1280W output power to easily drive a 12volt 30-80 lb trolling motor. The mini size is perfect for installation in RVs and campers, saving tons of space for more batteries. Make your off-grid life more powerful.
• 12V 100Ah mini deep cycle LiFePO4 batteries can be connected in parallel or series for greater capacity and voltage. Series/parallel connection of up to 4P4S, energy up to 20.48KWh and voltage up to 48V.Batteries used in parallel or series must have the same voltage and capacity and be recently purchased (within 6 months).
