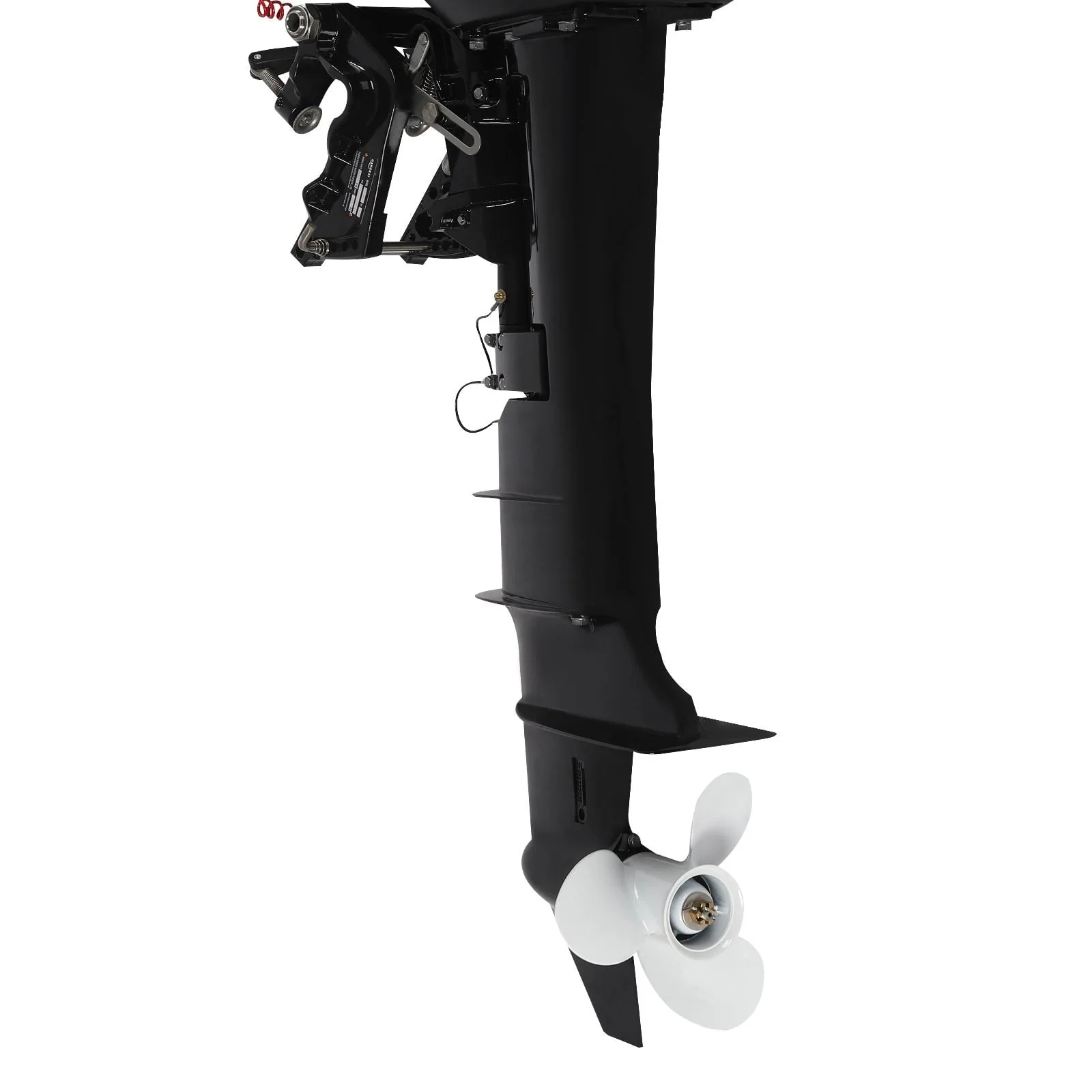

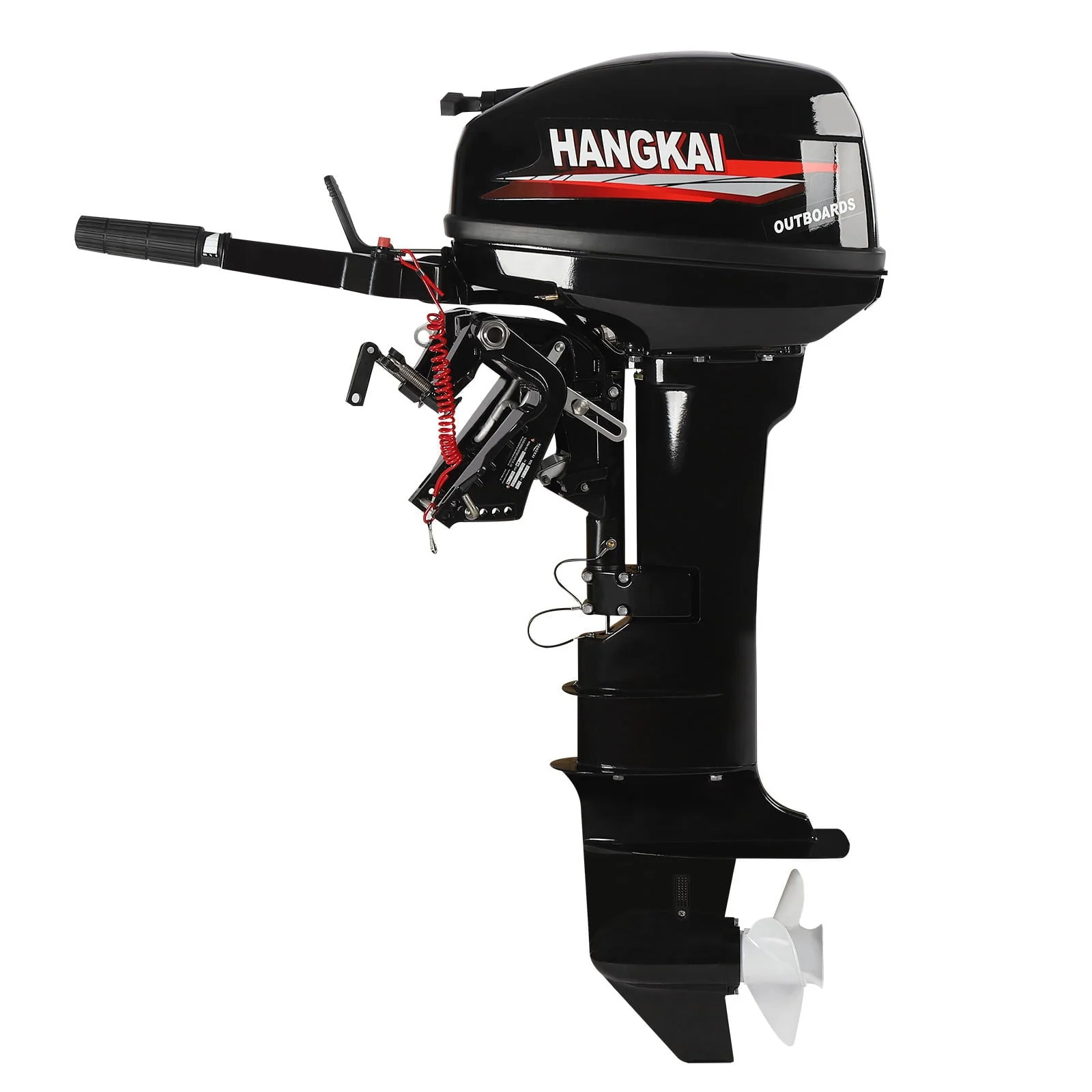

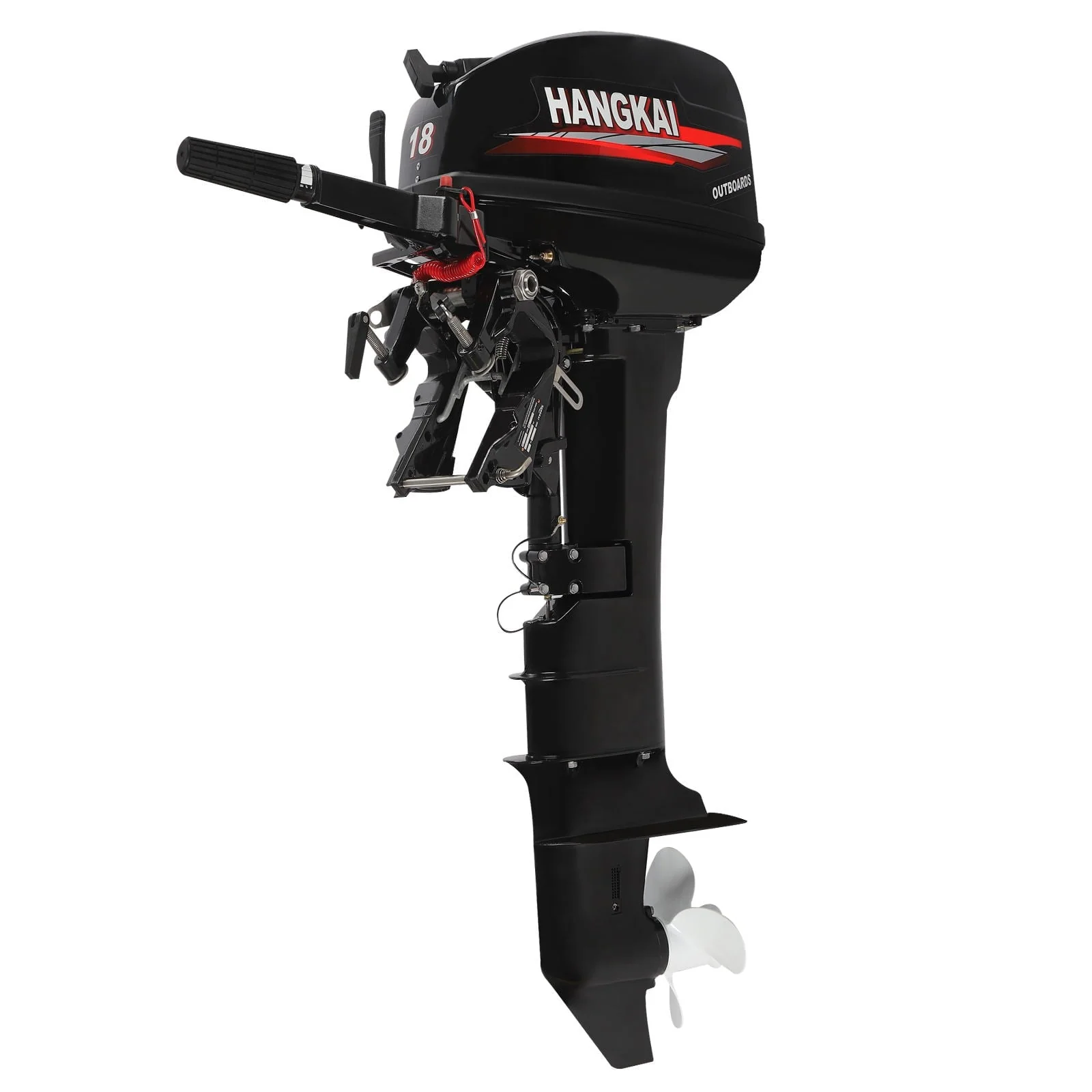

With a huge thrust, a sturdy and powerful propeller, and precise speed control, the outboard engine is a good helper for your water work. Its two-stroke motor, flexible steering, easy operation let you sneak up on fish, outdoor adventure, etc. with the
best speed and low noise

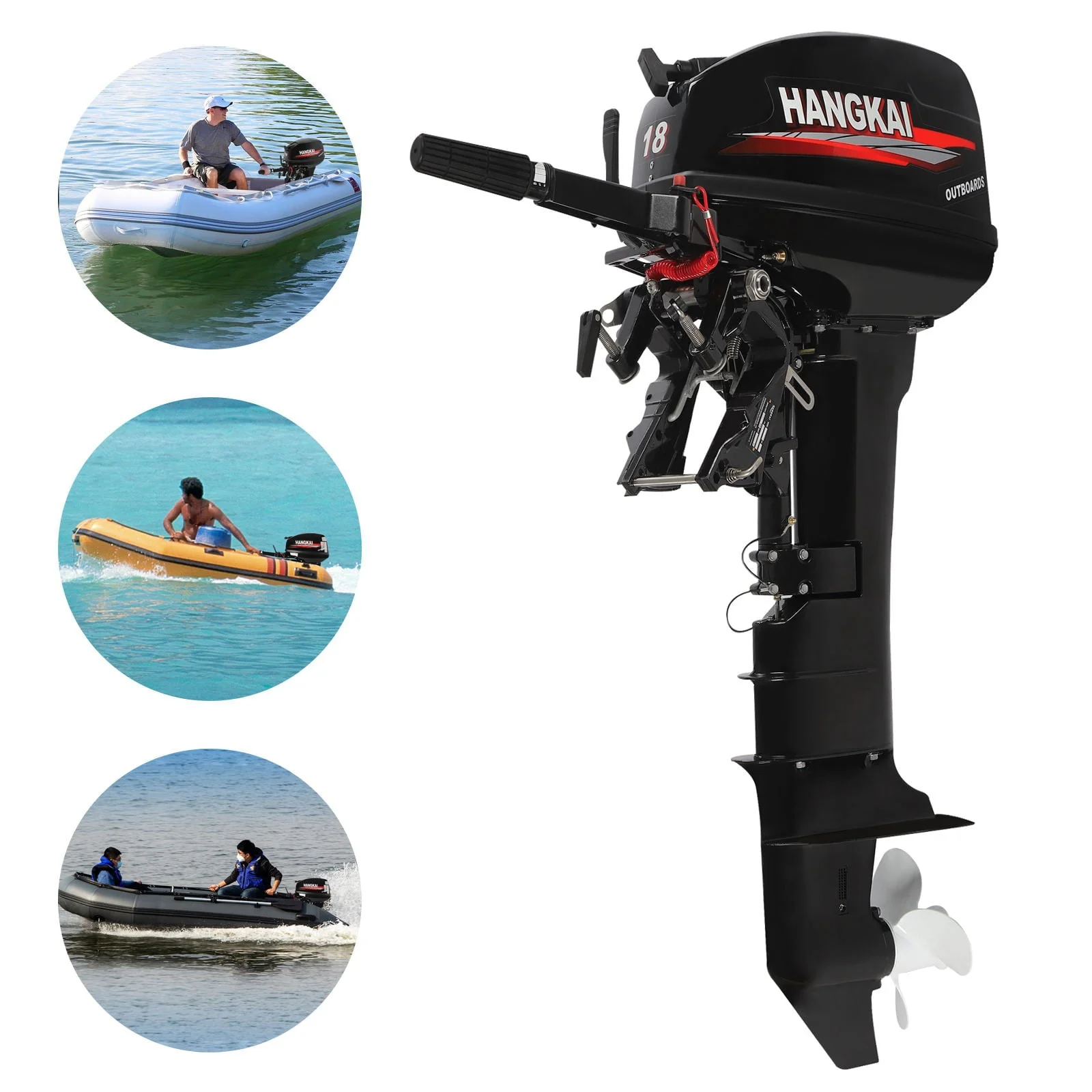

This outboard motor is suitable for small ships with different materials(width less than 4.9 feet and length less than 19.7 inches), such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery,
aquaculture, outdoor exploration, etc.

Specification：

Material: Aluminum Alloy

Color: Black

Model: 18HP Horsepower Long Axis

Displacement: 246CC

Gear Ratio: 2.08 (27:13)

Number of Cylinders: 2

Speed: 4500-5500RPM

Gear: F-N-R

Refueling Method: 92 Unleaded Gasoline is Recommended

Oil Tank Capacity: 24L/6.34gal

Load-bearing Capacity: 500-1000kg/1102-2204lbs

Ignition System: CDI

Cooling System: Water Cooling

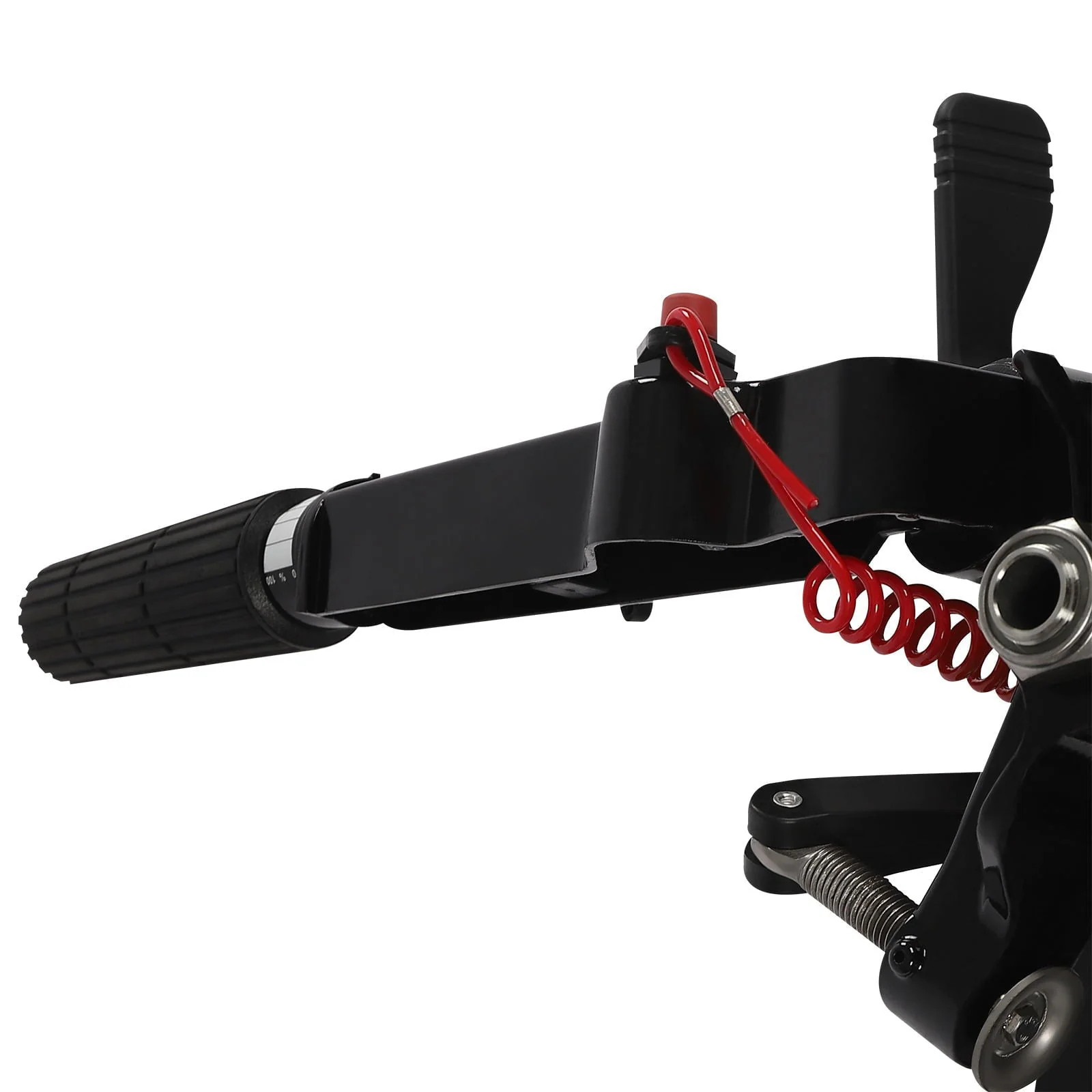

Control System: Tiller Control

Start System: Manual Start

Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter)

Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in

Cylinder Diameter * Stroke: 56mm/2.2in*50mm/2in

Recommended Engine Oil: 2 Stroke Engine Oil

Mixing Ratio: Fuel: Oil = 50:1

Trim and Tilt System: Manual Tilt

Net Weight: 28kg/61.7lbs

Gross Weight: 30kg/66.1lbs

Package Size: 133*71*38.5cm/52.4*28*15.2in

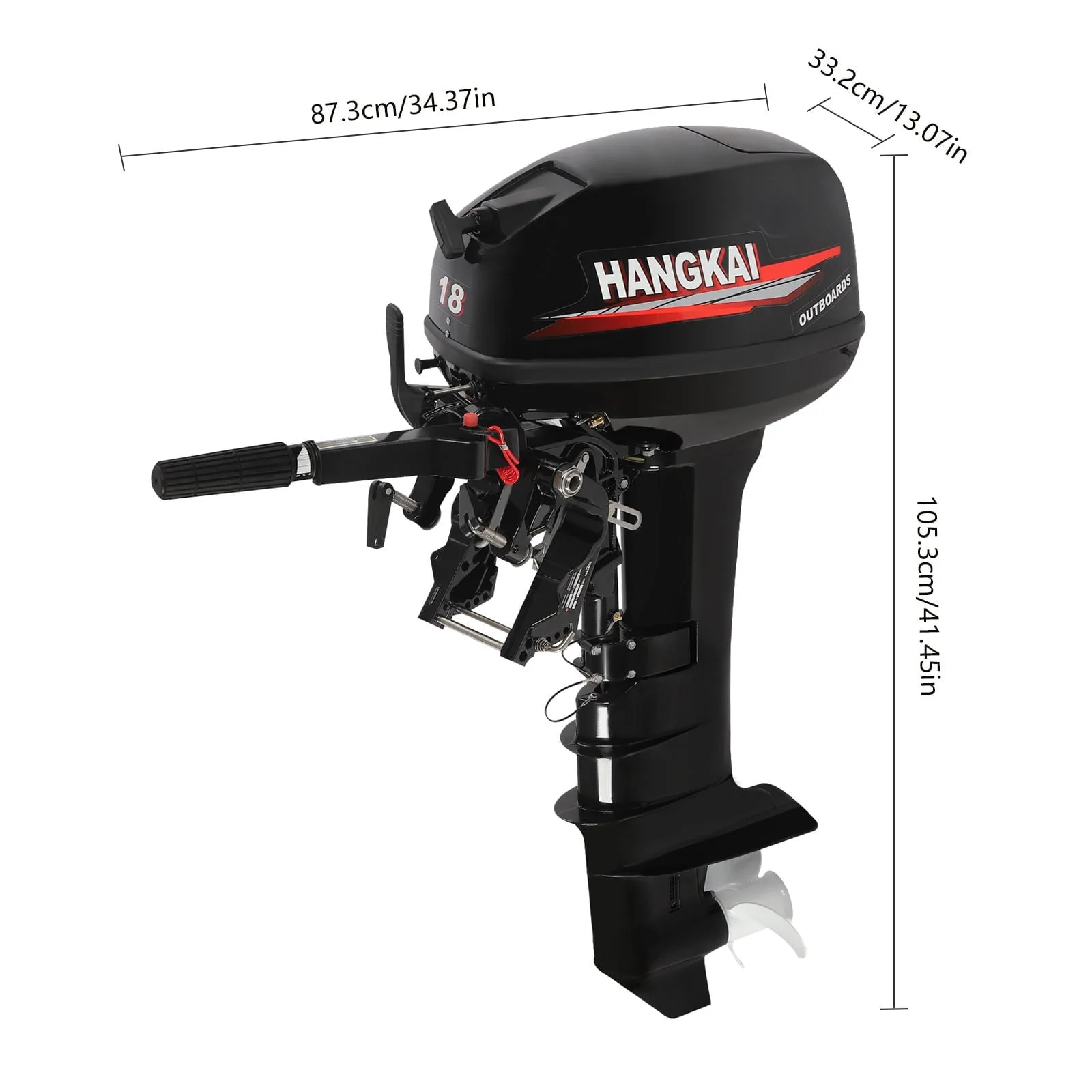

Product Size: 87.3*33.2*105.3cm/34.4*13.1*41.5in

Note:

Our machines are all without gear oil versions. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period. (If you do not know how to handle this, please contact us). Our outboard motor doesn’t with oil of gear,
please prepare it by yourself.

Gear Oil Filling Method：

There is a screw on the gearbox, unscrew the screw to add gear oil. Each machine will be filled with gear oil before leaving the factory, so it does not need to be refilled when it is used for the first time. After that, add according to personal use,
and check every ten hours

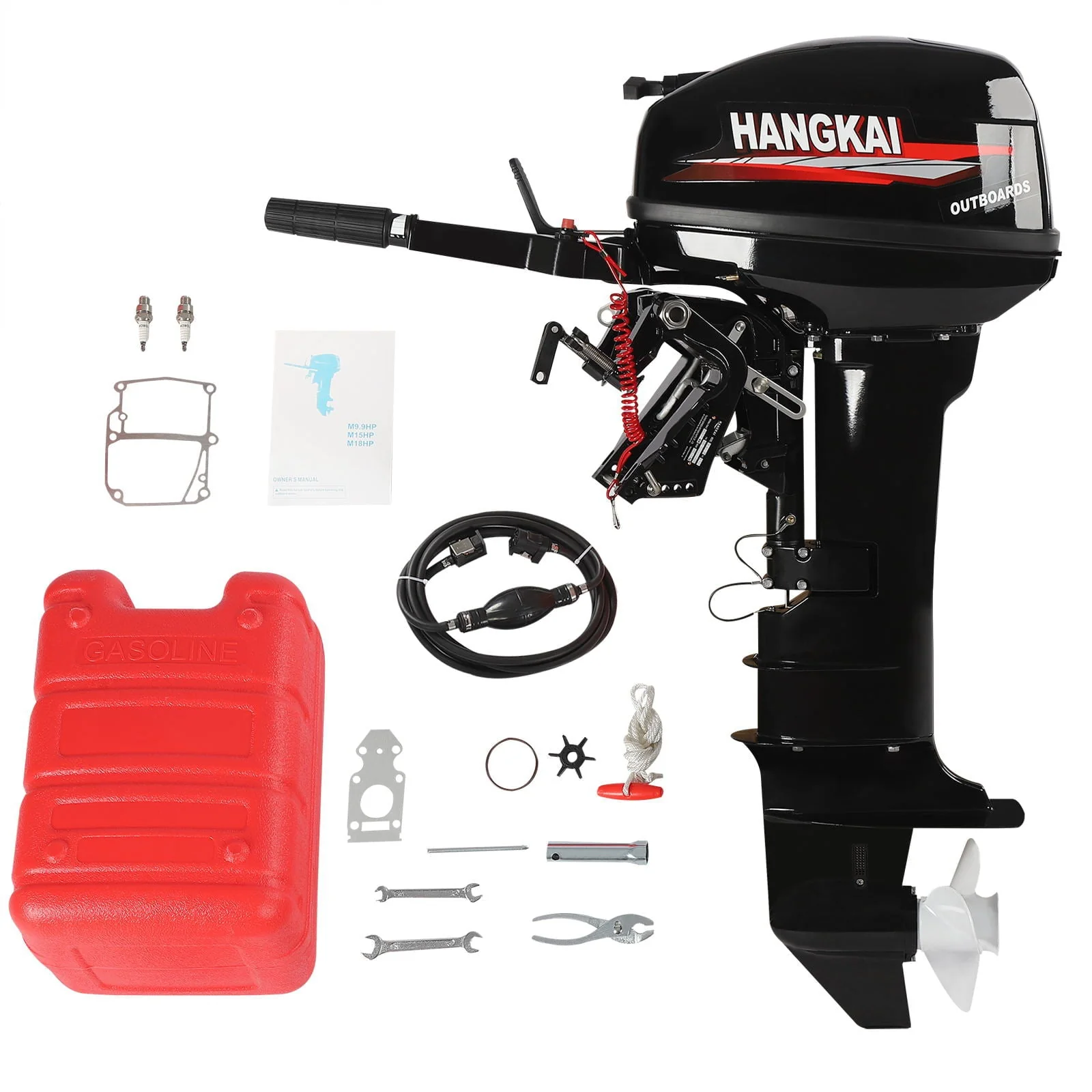

Package Included：

1x Outboard Motor

1x Flameout Rope

1x Oil Pipe

1x Sealing Ring

1x Paper Pad

1x Spark Plug

1x Start Rope

1x Water Pump Impeller

1x Cotter Pin

1x Fuel Tank

1x English Manual

Other Tools
